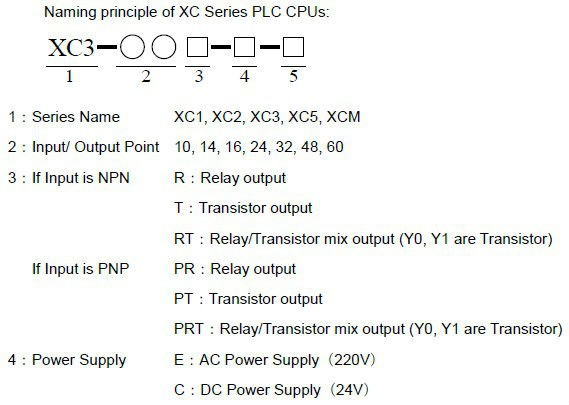

Item

Specification

Insulation Voltage

Above DC 500V 2Mohm

Noise Resistance

1000V 1uS pulse for 1 minute

Environment Temperature

0centigrade degree ~6centigrade degree

Ambient Humidity

5%~95%

COM 1

RS-232, be connected to host machine or HMI for programming or debugging

COM 2

RS-485/RS-232, network or connect to intelligent instrument, inverter, etc.

Installation

M3 screw fixed or DIN46277 (35mm width) guide rail installation

Grounding

The third type grounding (Never perform common grounding with strong power system)

Item

Specification

Program Operation Mode

Circulation scanning mode, timing scanning mode

Program Mode

Instructions and ladder chart

Dispose Speed

0.5us

Power Failure Holding

FlashROM

User Program’s Capacity

2500 steps

I/O Points

8 input points, 6 output points

Output Format

Relay

Power Supply

AC220V/DC24V

Interior Coil’s Points (M)

8512 points

Timer(T)

Points

620 points

Specification

100mS timer: set time 0.1~3276.7 seconds

10mS timer: set time 0.01~327.67 seconds

1mS timer: set time 0.001~32.767 seconds

Counter(C)

Points

635 Points

Specification

16 bits counter: Set value K0~32767

32 bits counter: Set value K0~2147483647

Data Register(D)

8512 characters

FlashROM Register(FD)

2048 characters

High-speed Count Format

High speed counter, pulse output, exterior interruption

Timing Scanning Interval Setting

1~99mS

Password Protection

6 characters ASCII

Self-diagnose Function

Power on self-diagnose, monitor timer, grammar check
