VFD185V43A-2 DELTA VFD-VE VFD Inverter Frequency converter 18.5kw 25HP 3PHASE 380V 600Hz for CNC high speed spindle motor

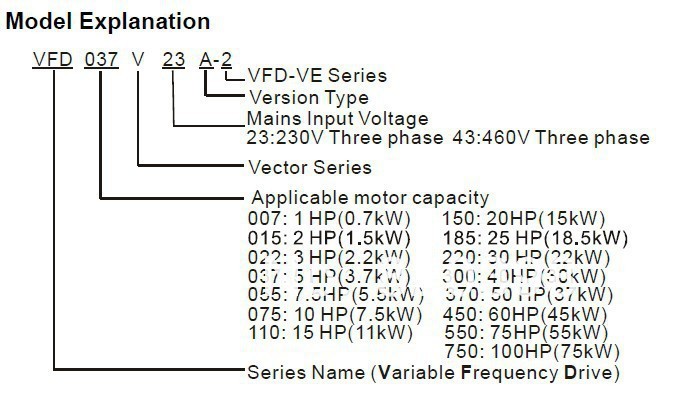

- Model: VFD185V43A-2
- Shipping Weight: 14.6Kg
- In Stock:3
- Manufactured by: Delta
![](images/star-on.png)
![](images/star-on.png)
![](images/star-on.png)
![](images/star-on.png)
![](images/star-on.png)
Features
This series adopts FOC (Field Oriented Control) which is a far more precise vector control algorithm. It can be used in both speed control and position control similar to a servo motor drive. The multi-function I/O terminal is expanded to meet users' various application needs. In addition, it is supplied with a Windows based PC software program for managing parameters and dynamic monitoring. It provides an excellent solution for load regulation. It can output 150% of rated torque at zero speed, and it can have "point to point" and relative distance control functions for position control, making it the best choice for challenging industrial control applications.
Specifications
Output frequency: 0~600Hz
4 points adjustable V/F curve, Sensorless Vector Control, Field-Oriented Control
Position/Speed/Torque control mode
Sensorless Vector Control 150% torque at 0.5Hz
150% holding torque with speed feedback
Overload : 150% for 1 minute and 200% for 2 seconds
Rotational/Static Auto-tuning for the motor parameters and Auto-tuning for load inertia
Excellence torque limit in all 4 quadrants of operation
Dual RS-485 ports, Fieldbus and PC software tools for applications
Applications
Power transmission equipment, elevator, crane, CNC tooling machines, extrusion machines, injection molding machines, and auto-storage and retrieval systems.
