1, package included:

1pcs TP02G-AS1 text panel new in box;

1pcs downloading programming cable(Only offer it free when you ask for after order. Not ship it default. The communication cable is not included, if you need, please contact us and inquiry it)

The software is free(we can send it by email if you can’t download it by yourself)

2, TP Series text display, COM1:RS232, DC power supply

TP02G-AS1 2 line monochrome STN display 160*32 dot matrix 256K FLASH, no calendar, COM2:RS485/422

TP04G-AS2 STN 4 monochrome 128*64 dot matrix display 256K FLASH, calendar, COM2:RS485/422

TP04G-AL2 STN 4 monochrome 192*64 dot matrix display 256K FLASH, calendar, COM2:RS485/422

TP04G-AL-C STN 4 monochrome 192*64 dot matrix display for 256K FLASH, a calendar, COM2:NO

TP04G-BL-C STN 4 monochrome 192*64 dot matrix display 256K FLASH, 0~9 digital keys, calendar, COM2:NO

TP04G-BL-CU STN 4 monochrome 192*64 dot matrix display 256K FLASH, 0~9 digital keys, there are calendar, COM2:NO, USB Download

TP08G-BT2 STN 8 monochrome 240*128 dot matrix display 1M FLASH, 0~9 digital keys, calendar, COM2:RS485/422

3, Features

The screen of this series can display two lines text or message at the same time. It not only has the features of light weight, cost-effective price, good flexibility in use, and easy-to-control operation, but also supports various communication protocols.

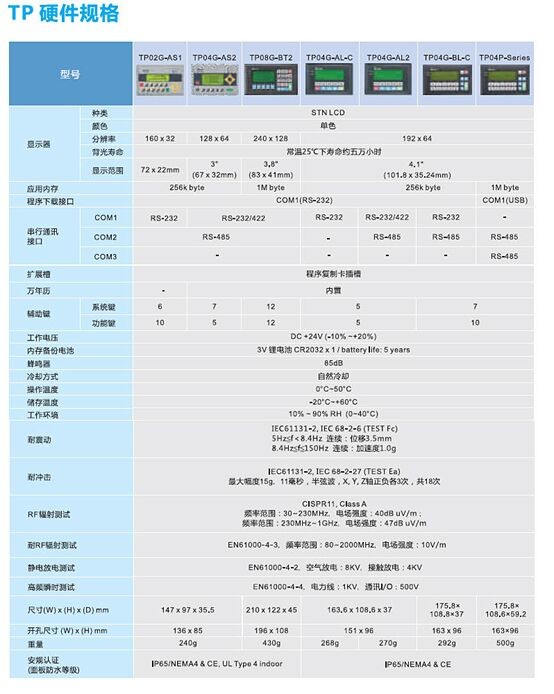

4,Specifications

STN LCD single color

160*32 pixels

256K Flash Memory

16 multiple function keys

Back-light auto turn off setting

Power, Communication, Alarm LED

2 Comm. Ports. It can communicate with different communication protocols simultaneously.

Provide "program copy card" function: Save download time.

Support multi-languages display

CE & UL approved
