TH765-NU3 HMI 7" 800*480 128MB USB port extension with programming Cable New
- Model: TH765-NU3
- Shipping Weight: 2Kg
- In Stock:100
- Manufactured by: Xinje
0 reviews
TH765-NU3
Configuration software: TouchWin v2.D.1k and USB drive (free English versions)
HMI Certification: CE SGS
The communication cable, which connects Human Interface and PLC, isn’t provided for free. If needed, please inform us of your PLC model, we will offer a best price.
HMI port can communicate with most of the equipment , in especial
Mitsubishi FX, Q series ; Siemens S7-200 ,S7-300,S7-400; Omron; SYSMAC; KOYO S series; Delta; LG; Panasonic; Schneider; FATEK; VIGOR; FUJI; Keyence; Emerson EC20 OEMax NX7 Modbus; RTU, ASCII agreements; ABB; SHIMADEN etc.
Product description
7.0 inches display, streamlining design
60 thousand, Supporting BMP/JPG picture format
Rich solid 3D gallery making vivid scene
Flexible choices of parts, users-defined custom motion track design
Simple switch-setting-toggle mode, accurate one has touch calibration
Function of users-defined data acquisition and preservation, supporting multiple data managements, such as time trend charts, XY trend chart etc
Supporting 2 USB connectors, realizing data fast transfer and storage
Demonstration of the type
MT/NT:60 thousand standard layout;
UT/NU:USB-A port;NT3;
Extension port;NU3:USB-A
|
Project |
TH765- NU3 |
|
|
Electrical specification |
Input Voltage |
DC24V( DC22V~DC26V) |
|
Current sinking |
250mA |
|
|
Allowing momentary electric power shutdown |
<10ms(less than one second in reality) |
|
|
Reactance voltage shock |
AC1000V,10mA,less than one minute(between the signal and the earth) |
|
|
Insulating resistance |
DC500V,>10MΩ(between the signal and the earth) |
|
|
connectors |
Download ports |
RS232/RS485 |
|
PLC port |
RS232/RS485/RS422 |
|
|
Expansion port |
RS485, supporting NT3-NU3 |
|
|
USB port 1 |
USB-B(fit in USB2.0standard),USB downloading port |
|
|
USB port 2 |
USB-A(fit in USB2.0standard),USB flash drive port, UT/NU/NU3 type supporting |
|
|
Environment |
Operating temperature |
0 ~50 0C |
|
Storage temperature |
-20 ~60 0C |
|
|
Operating Humidity |
10%RH~90%RH(No Condensation) |
|
|
Anti-Vibration |
10-25HZ(X, Y, Z dimension every 20 minutes 2G) |
|
|
Capacity of resisting disturbance |
Disturbance voltage:1500Vp-p Repetition interval:1us Lasting time:one minute |
|
|
Air |
Non-corrosive gases |
|
|
Protection |
IP65 front panel |
|
|
Display |
type |
65536 true colors |
|
Screen size |
7.0” |
|
|
Service life |
Over 50,000 hours, 250C of environment temperature, 24 hours operating |
|
|
Resolution |
800*480 |
|
|
Contrast |
V1.o hardware or updater can be tunable |
|
|
Word enactment |
Chinese simplified/complex, English, Japanese and Korean |
|
|
Character size |
Arbitrary Font and size |
|
|
Touch screen panel |
Four-wire-electricity-resistance touch screen |
|
|
Storage |
128M |
|
|
Structure |
Cooling ways |
Natural-draft |
|
External size(mm) |
204.0*150.5*43.9 |
|
|
Panel Cut out size (mm) |
192.0*138.5 |
|

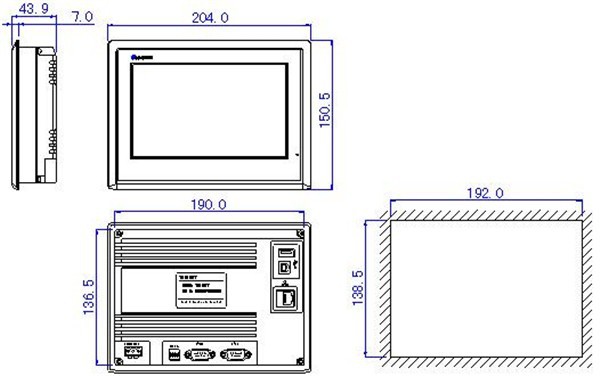

Size(mm)
Recommend 0.5mm more the size of Panel Cut Out.
