TH465-UT2 HMI 4.3" 480*272 8MB USB port 2COM with programming Cable New
- Model: TH465-UT2
- Shipping Weight: 1Kg
- In Stock:100
- Manufactured by: Xinje
0 reviews
TH465-UT2
HMI Certification: CE SGS
configuration software: TouchWin v2.D.1k and USB drive (free English versions)
The communication cable, which connects Human Interface and PLC, isn’t provided for free. If needed, please inform us of your PLC model, we will offer a best price.
HMI port can communicate with most of the equipment , in especial
Mitsubishi FX, Q series ; Siemens S7-200 ,S7-300,S7-400; Omron; SYSMAC; KOYO S series; Delta; LG; Panasonic; Schneider; FATEK; VIGOR; FUJI; Keyence; Emerson EC20 OEMax NX7 Modbus; RTU, ASCII agreements; ABB; SHIMADEN etc.
Product description
4.3 inches display, streamlining design
60 thousand, Supporting BMP/JPG picture format
Rich solid 3D gallery making vivid scene
Flexible choices of parts, users-defined custom motion track design
Simple switch-setting-toggle mode, accurate one has touch calibration
Function of users-defined data acquisition and preservation, supporting multiple data managements, such as time trend charts, XY trend chart etc
Supporting 2 USB connectors, realizing data fast transfer and storage
Demonstration of the type
MT:60 thousand standard layout;
UT:USB-A port;
MT2/UT2: COM1 and COM2 ports;
MT/UT: COM2 port
|
Project |
TH465- UT2 |
|
|
Electrical specification |
Input Voltage |
DC24V( DC22V~DC26V) |
|
Current sinking |
130mA |
|
|
Allowing momentary electric power shutdown |
<10ms(less than one second in reality) |
|
|
Reactance voltage shock |
AC1000V,10mA,less than one minute(between the signal and the earth) |
|
|
Insulating resistance |
DC500V,>10MΩ(between the signal and the earth) |
|
|
connectors |
Download ports |
RS232 supporting MT2/UT2 |
|
PLC port |
RS232/RS485/RS422 |
|
|
USB port 1 |
USB-B(fit in USB2.0standard),USB downloading port |
|
|
USB port 2 |
USB-A(fit in USB2.0standard),USB flash drive port, UT/ UT2 type supporting |
|
|
Environment |
Operating temperature |
0 degree centigrade-50 degree centigrade |
|
Storage temperature |
-20degree centigrade-60degree centigrade |
|
|
Operating Humidity |
10%RH-90%RH(No Condensation) |
|
|
Anti-Vibration |
10-25HZ(X, Y, Z dimension every 20 minutes 2G) |
|
|
Capacity of resisting disturbance |
Disturbance voltage:1500Vp-p Repetition interval:1us Lasting time:one minute |
|
|
Air |
Non-corrosive gases |
|
|
Protection |
IP65 front panel |
|
|
Display |
type |
65536 true colors |
|
Screen size |
4.3” |
|
|
Service life |
Over 50,000 hours, 250C of environment temperature, 24 hours operating |
|
|
Resolution |
480*272 |
|
|
Contrast |
Non-tunable |
|
|
Word enactment |
Chinese simplified/complex, English, Japanese and Korean |
|
|
Character size |
Arbitrary Font and size |
|
|
Touch screen panel |
Four-wire-electricity-resistance touch screen |
|
|
Storage |
8M |
|
|
Structure |
Cooling ways |
Natural-draft |
|
External size(mm) |
152.0*102.0*41.8 |
|
|
Panel Cut out size (mm) |
144.0*94.0 |
|

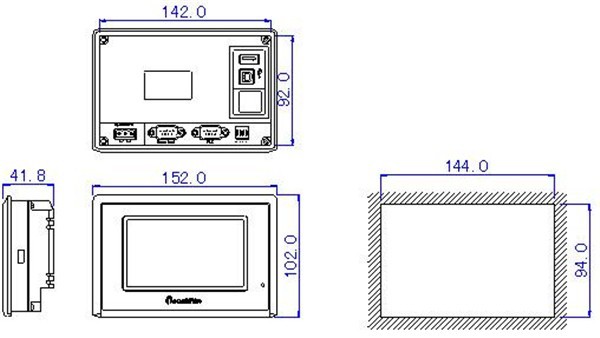

Size(mm)
Recommend 0.5mm more the size of Panel Cut Out.
