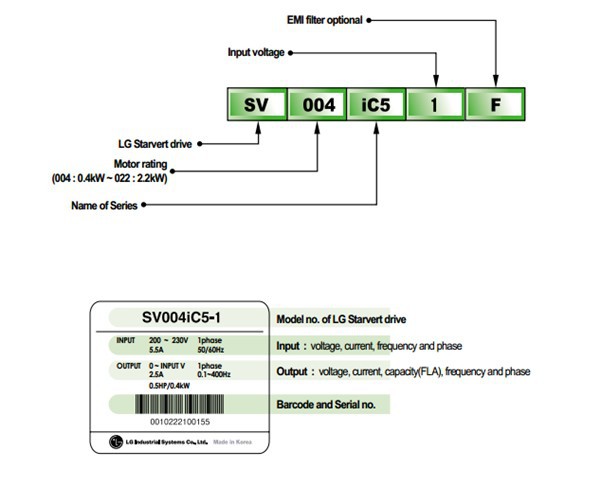

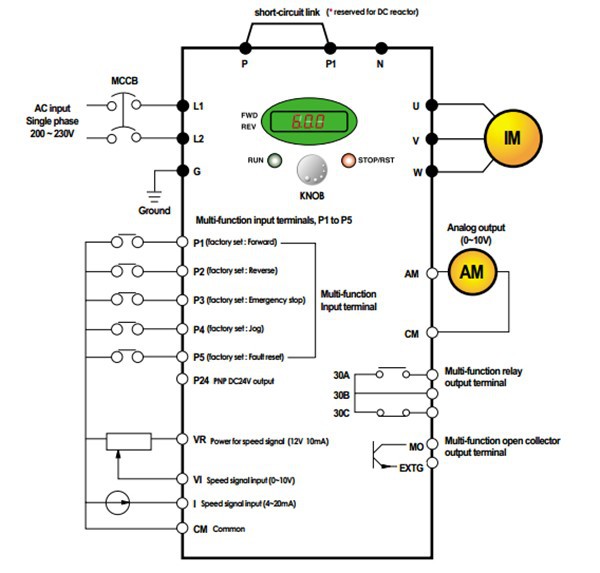

model

SV004iC5-1

SV008iC5-1

SV015iC5-1

SV022iC5-1

Motor rating

[HP]

[kW]

0.5

0.4

1

0.75

2

1.5

3

2.2

Output ratings

Capacity[kVA]

FLA[A

0.95

2.5

1.9

5

3

8

4.5

12

Voltage

Single phase, 200 to 230V

Input ratings

Frequency

Voltage

Frequency

0 to 400Hz

Single phase, 200 to 230V ( ±10%)

50 to 60Hz ( ±5% )

Control method

V/F control, Sensorless vector control

Frequency setting resolution

Digital reference : 0.01Hz Analog reference : 0.06Hz/60Hz

Frequency setting accuracy

Digital : 0.01% of Maximum output frequency Analog : 0.1% of Maximum output frequency

V/F ratio

Linear, Squar pattern, User V/F

Overload capacity

1min. at 150%, 30sec. at 200% ( with inverse characteristic )

Torque boost

Manual( 0 to 15% adjustable ), Auto

Input signal

Output signal

Operation

Function

oprator control                  Keypad / Terminal / Communications

Frequency setting                Analog : 0~10V/4~20mA  Digital : Keypad

Start signal                     Forward / Reverse

Multi-step                       Setting up to 8 speeds ( use multi-function terminal )

Multi-step accel                 0.1~6000 sec. Max. 8 types available by multi-function terminal

/decel time                      Selectable accel/decel patterns : Linear, U and S

Emergency stop                   Interrupting the output of the drive

Jog Jog                           Jog operation

Fault reset                      Reset the fault when protective function is active

Operation status &                Frequency detection, Overload alarm, Stalling, Overvoltage, Undervoltage,

Fault output      Drive overheating, Run, Stop, Constant speed, Speed searching,

Fault output ( Relay and Open collector output )

Indicator                         Choose one from output frequency, current, voltage and DC voltage.(Output

voltage : 0~10V )

DC braking, Frequency limit, Frequency jump, Second function,

Slip compensation, Reversing prevention, Auto restart, PID control

Drive trip

Overvoltage, Undervoltage, Overcurrent, Drive overtemperature, Motor overtemperature, I/O phase loss, I/O mis-wiring,

Overload , External device fault 1.2, Loss of speed command, Hardware fault, Communication error, CPU error

Drive alarm

Stall prevention, Overload alarm

Momentary

Less than 15 msec : keeping operation

power less

More than 15 msec : auto restart available

Operation information

Output frequency, current and voltage, Set frequency value, Operation speed, DC voltage

Trip information

Display the trip cause when the protection function activates. Recent 5 faults records stored

Operating ambient temp.

-10degree Celsius ~ 4degree Celsius0

Storage temperature

-20degree Celsius ~ 65

Humidity

90%Rh max.(non condensing)

Altitude & Vibration

1000m max, 5.9m/sec2(0.6g) max.

Atmosphere

No corrosive gas, flammable gas, oil mist or dust

Pressure

70~106k Pa
