SV001iE5-1C VFD inverter 0.1KW 200V Single Phase NEW
- Model: SV001iE5-1C
- Shipping Weight: 2Kg
- In Stock:10
- Manufactured by: LS
0 reviews
| SV001iE5-1C VFD inverter 0.1KW 200V Single Phase NEW |
Features
*V/f control
*Compact size: 68 x 128 x 85mm (2.7 x 5 x 3.3 inch)
*0.1 ~ 200Hz frequency output
*1 ~ 10kHz carrier frequency
*Fault history: Last 3 faults
*IP20 enclosure
*RS485 (LS Bus / Modbus RTU) communication (Built-in option)
*DC Injection braking
*Selectable manual/ automatic torque boost
*Selectable PNP/NPN input signal
*PI control
*Up-Down & 3-Wire operation
*Automatic restart after instantaneous power failure
*Built-in potentiometer
*Monitoring & commissioning PC based software tool (Drive View)
Parameter copy unit
|
Model number: SV***iE5-* |
001-1 |
002-1 |
004-1 |
001-2 |
002-2 |
004-2 |
|
|
Motor rating |
[HP] |
0.13 |
0.25 |
0.5 |
0.13 |
0.25 |
0.5 |
|
[kW] |
0.1 |
0.2 |
0.4 |
0.1 |
0.2 |
0.4 |
|
|
Output rating |
Capacity [kVA |
0.3 |
0.6 |
0.95 |
0.3 |
0.6 |
1.14 |
|
Current [A] |
0.8 |
1.4 |
2.5 |
0.8 |
1.6 |
3.0 |
|
|
Voltage [V] |
Three-phase 200 ~ 230V |
||||||
|
Frequency [Hz] |
0.1 ~ 200Hz |
||||||
|
Input rating |
Voltage [V] |
Single-phase 200~230V (±10%) |
Three-phase 200~230V (±10%) |
||||
|
Frequency [Hz] |
50 ~ 60Hz (±5%) |
||||||
|
Current [A] |
2.0 |
3.5 |
5.5 |
1.2 |
2.0 |
3.5 |
|
|
Weight |
[kg] |
0.44 |
0.46 |
1.68 |
0.43 |
0.45 |
0.67 |
Applications:
Elevator automatic doors, sports equipment, food machinery, printing/packaging conveyor belt
Other hot itmes of this LS 230V iE5 series inverter for above applications:
|
SV001IE5-1 |
SV001IE5-1 LS AC Drive Inverter Starvert Series iE5 Single Phase 0.1KW 100W 200~230V New |
|
SV002IE5-1 |
SV002IE5-1 LS AC Drive Inverter Starvert Series iE5 Single Phase 0.2KW 200W 200~230V New |
|
SV004IE5-1 |
SV004IE5-1 LS AC Drive Inverter Starvert Series iE5 Single Phase 0.4KW 400W 200~230V New |

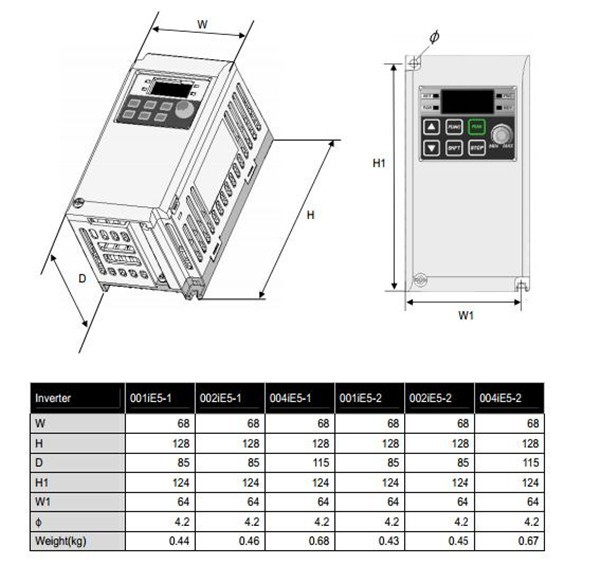

Dimensions

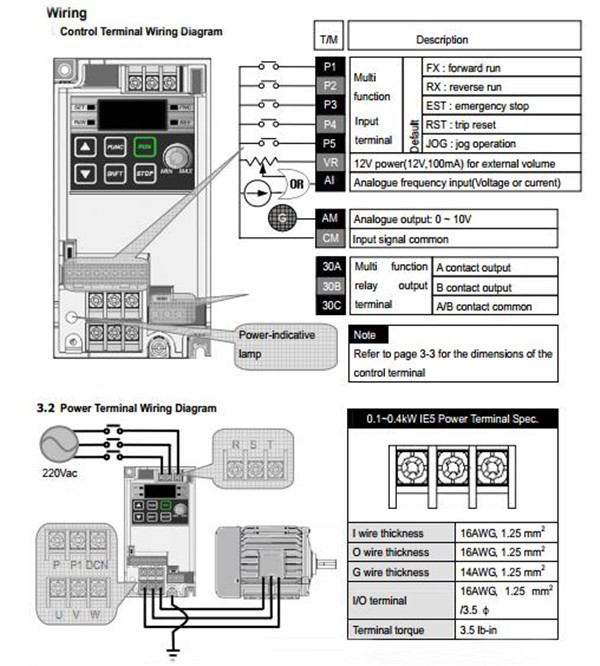

Wiring
