SUNFAR 5.5KW 7.5HP 1000HZ VFD Inverter Frequency converter 3 phase 380v input 3phase 0-380v output 13A for Engraving spindle motor

Product information:

Model: E550-4t0055L

Brand: Sunfar

Input: 3-phase AC 380V ±20% 50/60Hz

Output: 0~1000HZ

Power: 5.5 kw

Features:

1. User-defined V/F curve and torque boost function, support powerful cutting capability when processing

2. Output frequency up to 1000Hz, support the requirement of high-speed processing.

3. Highly adaptive to grid voltage, and can stand for ±20% fluctuation.

4. Particular self-adaptive control technology, allowing for automatic current and voltage limitation and under-voltage suppression during operation.

5. Configuration of RS485 communication interface, optional MODBUS protocol and SUNFAR self-defined protocol; with linkage synchronous control function, allowing for easily communicating inverters with PLC, industrial personal computers and other industrial personal equipments.

6. The panel supports hog plug, applicable for system integration for various applications.

7. Vivid real-time monitoring, allowing for monitoring input and output current, voltage and so on in real time.
8. 4-channel multifunctional input terminal, with 29 kinds of terminal function definitions, 16 kinds of programmable status outputs, hence enabling flexible control over parameters.
9. Having a built-in counter, able to conduct simple counting with match of functional terminals.
10. Internally integrated and optimized PID controller, facilitating users to conduct closed-loop control over temperature, etc. Able to simplify control system structure, so as to reduce cost.

Matching spindle motor:
No more than 5.5kw and 60000rpm spindle motor such as:

95W,300w,400w,800w,1.2kw,1.5kw,2.2kw,3.2kw,3.5kw,4kw,4.5kw,5kw,5.5kw water-cooled, air-cooled, nature cooled spindle motors.

The matching motors in our store can be provided are: GDZ80-2.2B-2 GDZ85-2.2-380V GDZ100-3-380V GDZ105-3.2-380V SDK100-12-24Z-2.2 and so on

Application:

Textile, food, transmission, ceramics, grinder , centrifugal machine, Engraving machine, etc

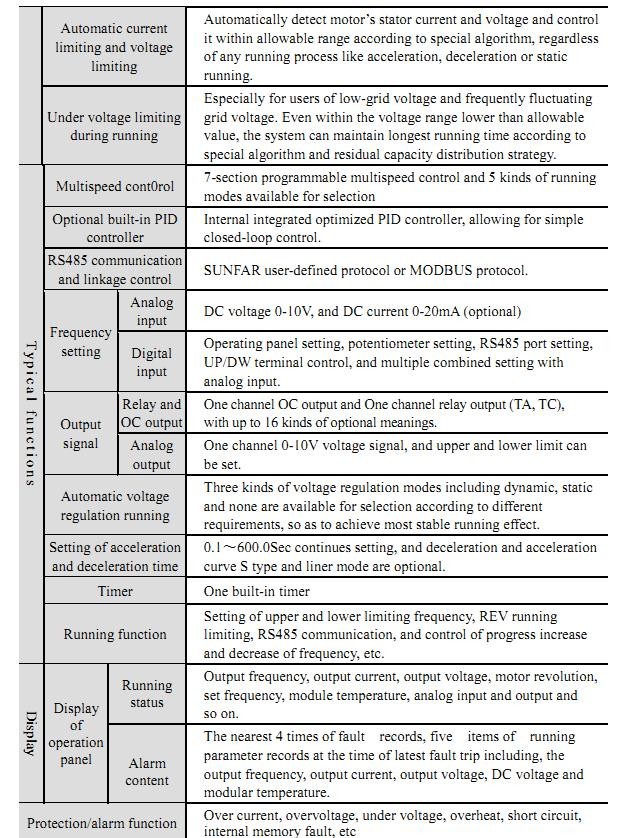

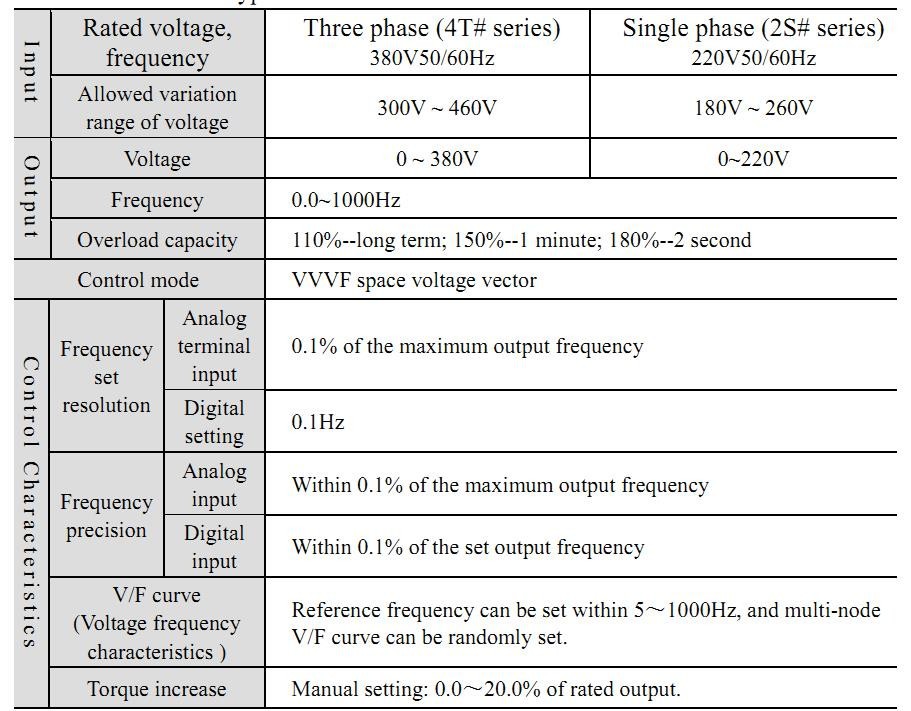

Specification:
