SUNFAR 1.5KW 2HP 1000HZ VFD Inverter Frequency converter single phase 220v input 3phase 0-220v output 7.5A for Engraving spindle motor

Product information:

Model: E300-2S0015L

Brand: Sunfar

Input: 1-phase AC 220V ±20% 50/60Hz

Output: 0~1000HZ

Power: 1.5kw

Features:

1. User-defined V/F curve and torque boost function, support powerful cutting capability when processing

2. Output frequency up to 1000Hz, support the requirement of high-speed processing.

3. Highly adaptive to grid voltage, and can stand for ±20% fluctuation. .

4. Particular self-adaptive control technology, allowing for automatic current and voltage limitation and under-voltage suppression during operation.

5. Configuration of RS485 communication interface, optional MODBUS protocol and SUNFAR self-defined protocol; with linkage synchronous control function, allowing for easily communicating inverters with PLC, industrial personal computers and other industrial personal equipments.

6. The panel supports hog plug, applicable for system integration for various applications.

matching spindle motors:

No more than 1.5kw and 60000rpm spindle motor such as:

95W,300w,400w,800w,1.2kw,1.5kw, water-cooled, air-cooled, nature cooled spindle motors.

The matching motors in our store can be provided are: GDZ80-1.5-ER16 GDZ80-1.5-ER11 GDZ62-1.2 SDK80-12-24Z-1.2 SDK85-12-24Z-1.5  GDZ93*82-1.5-220V  GDZ-80-1.5F etc.

Application:

Textile, food, transmission, ceramics, grinder, centrifugal machine, Engraving machine, etc.

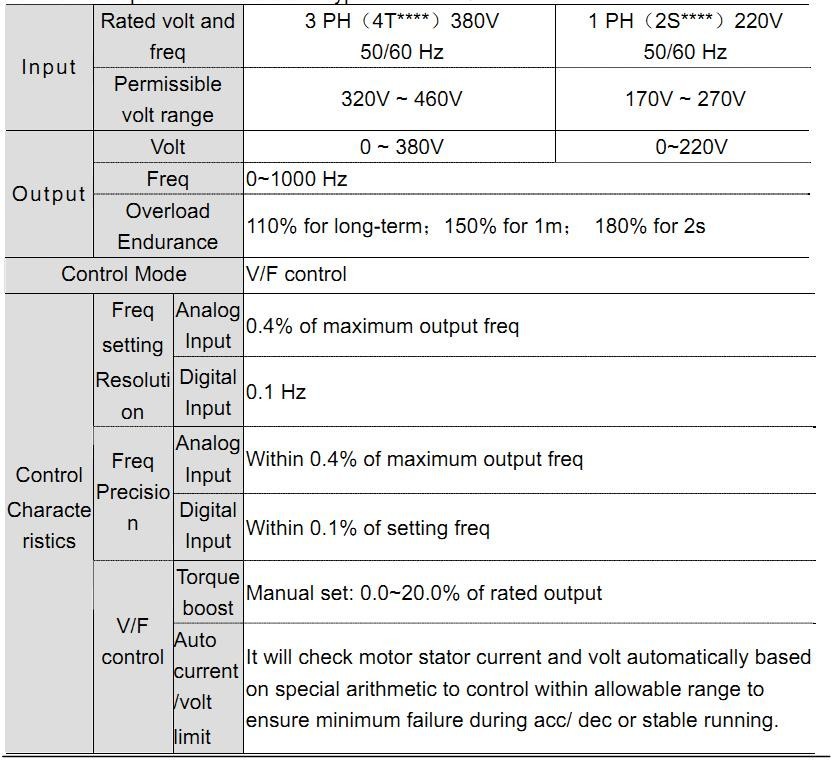

Specification:
