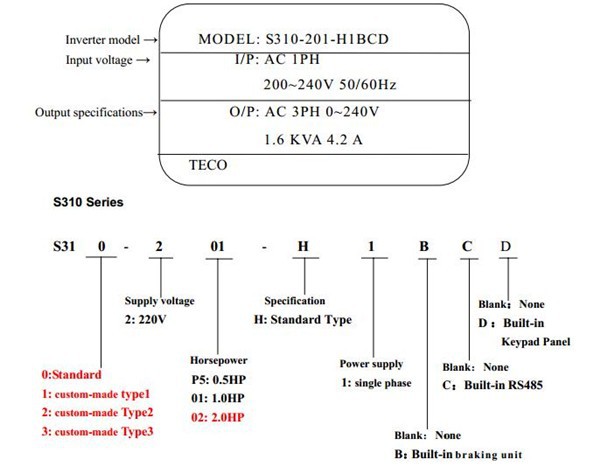

S310-xxx-XXX

2P5

201

202

Horsepower (HP)

0.5

1

2

Max Applicable Motor Output (KW)

0.4

0.75

1.5

Rated Output Current(A)

3.1

4.2

7.5

Rated Capacity(KVA)

0.88

1.60

2.9

Max. Input Voltage

Single Phase: 200~240V +10%-15%, 50/60Hz+-5%

Max.Output Voltage

Single Phase: 200~240V

Input Current(A)

5.4

10.4

16

Net Weight(KG)

0.97

1.07

Net. Weight(KG)Keypad

1.0

1.1

Allowable momentary power loss time

(second)

1.0

1.0

2.0

Item

S310

Control

V/F

Frequency Control

Range

0.01~400.00Hz

Setting Resolution

Digital: 0.01Hz, Analog: 0.06Hz/60Hz(10bits)

Keypad Setting

Set directly with “up” “down” keys or the VR on the keypad

Display Function

Five digital LED and status indicator: display frequency/Inverter parameter/Fault Log/Program Version

External Signal setting

1. External potentiometer 0-10V/0-20mA

2. Provides up/down controls, speed control or automatic procedure control with multifunctional contacts on the terminal block(TM2)

Frequency Limit Function

Upper/lower frequency limits

General Control

Carrier frequency

1~12KHz

V/F pattern

6 fixed patterns, 1 programmable curve

Acc/Dec control

Acc/Dec time(0.1~3,600 seconds)

Multifunction analog output

4 functions (refer to description on 2-12)

Multifunction input

10 functions

Multifunction output

6 functions

Other Functions

Momentary Power Loss Restart, Overload Detection, 8 preset speeds, 2/3-wire Control, torque boost, Slip Compensation, Frequency Upper/Lower Limit, Modbus slave and PC/PDA Link, Auto Restart.

Communication Control

1. Control by RS485

2. One to one or one to many (RS485 ONLY) control.

3. BAUD RATE/STOP BIT/PARITY/bit can be set

Braking Torque

About 20%, standard model the specified external braking resistors can provide 100%

Operation temperature

14-120⁰F(-10~50⁰C)

Storage temperature

4-140⁰F(-20~60⁰C)

Humidity

0-95% Relative Humidity (Non-condense)

Vibration

1G(9.8m/S²)

Enclosure

IP20

Protective Functions

FUSE protection

The motor stops after FUSE melt

Over Voltage

200V class: DC Voltage>410V

Under Voltage

200V class: DC Voltage<190V

Momentary Power Loss Restart

Restart can be initiated with spin start

Other Function

Over torque detection, error contact control, reverse prohibit, prohibit for direct start after power up and error recovery.
