NT631C-ST153-EV3 10.4 inch touch screen HMI new in stock
- Model: NT631C-ST153-EV3
- Shipping Weight: 4Kg
- In Stock:10
- Manufactured by: Omron
0 reviews
| NT631C-ST153-EV3 10.4 inch touch screen HMI new in stock |
General Specifications
|
Model |
NT631C-ST153(B)-EV3 |
|
Rated power supply voltage |
24 VDC |
|
Allowable power supply voltage range |
20.4 to 26.4 VDC (24 VDC -15%/+10%) |
|
Power consumption |
18 W max. |
|
Ambient operating temperature |
0 to 50 °C |
|
Storage temperature |
-20 to 60 °C |
|
Ambient operating humidity |
35% to 85% (with no condensation) |
|
Ambient operating environment |
No corrosive gases |
|
Noise immunity |
Conforms to IEC 61000-4-4 at 2 kV (power supply line). |
|
Vibration resistance (during operation) |
5 to 9 Hz, single amplitude: 3.5 mm |
|
Shock resistance (during operation) |
147 m/s2, 3 times each in X, Y, and Z directions |
|
Weight |
2.5 kg max. |
|
Degree of protection (front panel) |
Equivalent to IP65 oil-proof type and NEMA4 * |
* The equipment cannot be used for long periods of time in locations which expose the panel to spills of oil.
Display/Panel Specifications
|
Model |
NT631C-ST153(B)-EV3 |
||
|
Display |
Display device |
Color TFT LCD |
|
|
Number of dots (resolution) |
640 dots (horizontal) × 480 dots (vertical) |
||
|
Effective display area |
211 × 158 mm (10.4 inches) |
||
|
Display color |
8 colors (intermediate colors can be displayed in tiling patterns) |
||
|
Service life |
50,000 hours (until contrast is reduced by 50%) |
||
|
Automatic turn-OFF |
1 to 255 minutes/None |
||
|
Backlight |
Service life (when brightness is set |
50,000 hours min. * |
|
|
LED |
POWER |
Green |
Lit while power is being supplied. |
|
RUN |
Green |
Lit during operation |
|
|
Orange |
Lit when the battery voltage is low (when operating) |
||
|
Red |
Lit when the battery voltage is low (when stopped) |
||

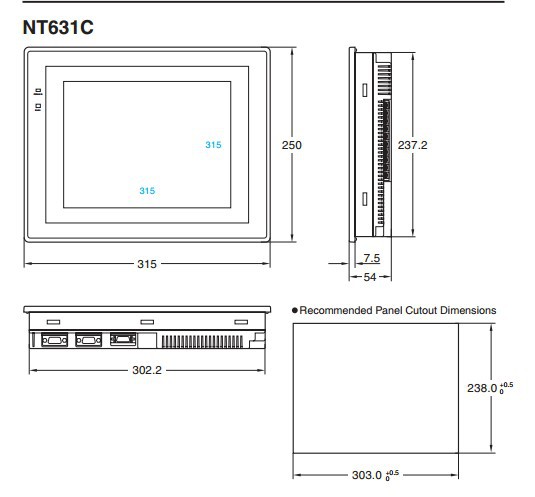

Dimensions
