Series

NS5-V2

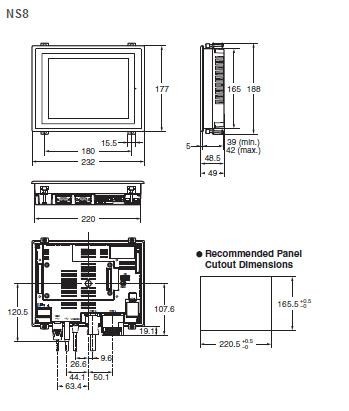

NS8-V2

NS10-V2

NS12-V2

NS15-V2

Rated power supply
voltage

24 VDC

Allowable voltage range

20.4 to 27.6 VDC (24 VDC ± 15%)

Power consumption

15 W max.

25 W max.

45 W max.

Ambient operating
temperature

0 to 50 °C
Note:
The ambient operating temperature is subject to the following restrictions according to the
mounting angle.
Mounting angle of 0 to 30° to the horizontal:
When no Expansion Units are mounted, the operating temperature range is 0 to 45 °C.
When a Video Input Unit or a Controller Link Interface Unit is mounted, the ambient
operating temperature is 0 to 35 °C.
Mounting angle of 30 to 90 ° to the horizontal: Operating temperature range of 0 to 50 °C

Storage temperature

-20 to 60 °C *1

Ambient operating
humidity

35 to 85% (0 to 40 °C), 35 to 60% (40 to 50 °C) (with no condensation)

Operating environment

No corrosive gases.

Noise immunity

Conforms to IEC61000-4-4, 2 kV (power lines).

Vibration resistance
(during operation)

10 to 57 Hz, 0.075 mm amplitude, 57 to 150 Hz, 9.8
m/s² 30 min each in X, Y, and Z directions

5 to 8.4 Hz, 3.5 mm single amplitude,
8.4 to 150 Hz, 9.8 m/s² 10 min times
each in X, Y, and Z directions

Shock resistance
(during operation)

147 m/s² 3 times each in direction of X, Y, and Z

Weight

1.0 kg max.

2.0 kg max.

2.3 kg max.

2.5 kg max.

4.2 kg max.

Degree of protection

Front operating panel: IP65 oil-proof type and NEMA4 UL type 4. *2
May not be applicable in locations with long-term exposure to oil.

Ground

Ground to 100 Ω or less.

Battery life

5 years (at 25 °C): Replace battery within 5 days after the battery runs low (indicator lights
orange).

Applicable standards

Certified for conformance to UL 508, UL 1604, EMC Directive, NK, and LR Standards.

Series

NS8-V2

NS10-V2

Model

NS8-
TV00-
V2

NS8-
TV01-
V2

NS8-
TV00B-
V2

NS8-
TV01B-
V2

NS10-
TV00-
V2

NS10-
TV01-
V2

NS10-
TV00B-
V2

NS10-
TV01B-
V2

Built-in Ethernet port

No

Yes

No

Yes

No

Yes

No

Yes

Case color

Ivory

Black

Ivory

Black

Display device

High-definition TFT color LCD

High-definition TFT color LCD

Effective display area

Width 170.9 × height 128.2 mm (8.4
inches)

Width 215.2 × height 162.4 mm (10.4
inches)

Display colors

256 colors

Number of dots

640 dot horizontal × 480 dot vertical

View angle

Left/right: 80°, Top: 80°,
Bottom: 60° *3

Left/right: 70°, Top: 65°,
Bottom: 65° *3

Screen data capacity

60 Mbytes

Image data (BMP or JPG images)

32,768 colors

Memory Card

Supported

Ladder Monitor function

Supported

Video Input Unit support

Supported (Image displayed via video input is 260,000 colors)

Controller Link Interface Unit
(Wired) support

Not supported

Supported

Backlight
*1

Service life *2

50,000 hours min.

Brightness
adjustment

Three-level or 32-level brightness adjustment from the touch panel screen. *3

Backlight error
detection *4

Error is detected automatically, and the RUN indicator flashes green as notification.

Touch
panel
(matrix
type)

Method

Matrix resistive membrane

Number of switches/
resolution

768 (32 horizontal × 24 vertical)
20 × 20 dots for each switch

1,200 (40 horizontal × 30 vertical)
16 × 16 dots for each switch

Input

Pressure-sensitive

Service life

1,000,000 touch operations.

Display
text

Labels

Can be specified in CX-Designer. Font, style, and size can be specified.

Numerals, alarms,
and character
strings

Scalable Gothic: Magnification: 6 to 255 points
Rough: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8
Standard: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8
Fine: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8
7-segment display: Can display only numerals, dates, and times.

Supported languages
(42 languages)

Scalable Gothic, rough, standard, and fine can be used for 42 languages.
Japanese, simplified Chinese, traditional Chinese, Korean, English, French,
German, Italian, Portuguese, Spain, Swedish, Dutch, Finnish, Norwegian, Basque,
Catalan, Danish, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Slovak,
Slovenian, Bulgarian, Belarusian, Russian, Serbian, Macedonian, Ukrainian,
Georgian, Icelandic, Afrikaans, Faroese, Indonesian, Greek, Turkish, Estonian,
Latvian, Lithuanian, Thai (supported only with scalable Gothic font)

Text
attributes

Color

256 colors

Font style (only
when vector font is
specified)

Bold or italic

Vertical alignment

Top, center, or bottom

Horizontal alignment

Left-justified, centered, or right-justified

Flicker

Objects supporting
flicker

Functional objects: Select from up to 10 types of registered flicker settings. The
flicker speed and flicker range can be set.
Fixed objects: Select from three flicker types.

Numeral units and scale settings

1.000 max.

Alarm/event settings

5,000 max.

Expansion interface

For Expansion Interface Units
