NP5-MQ001B 5.7 inch touch screen HMI new in stock
- Model: NP5-MQ001B
- Shipping Weight: 2Kg
- In Stock:10
- Manufactured by: Omron
0 reviews
| NP5-MQ001B 5.7 inch touch screen HMI new in stock |
General Specifications
|
Item |
Specifications |
||
|
NP5-SQ000B/NP5-SQ000 NP5-SQ001B/NP5-SQ001 |
NP5-MQ000B/NP5-MQ000 NP5-MQ001B/NP5-MQ001 |
NP3-MQ000B/NP3-MQ000 NP3-MQ001B/NP3-MQ001 |
|
|
Rated power supply voltage |
24 VDC |
||
|
Allowable voltage range |
21.6 to 27.6 VDC (24 VDC –10% to +15%) |
||
|
Allowable input power interruption time |
No restriction. |
||
|
Power consumption |
12 W max. |
||
|
Ambient operating temperature |
0 to 50°C (See notes 1 and 2.) |
||
|
Storage temperature |
–20 to +60°C (See note 2.) |
||
|
Ambient operating humidity |
35 to 85%RH with no condensation (0 to 40°C) (See notes 2.) 35 to 50%RH with no condensation (40 to 50°C) (See notes 2.) |
||
|
Operating environment |
No corrosive gases. |
||
|
Noise immunity |
Conforms to IEC61000-4-4, 2 KV (power lines) |
||
|
Vibration resistance (during operation) |
5 to 9 Hz with 3.1 mm amplitude and 9 to 150 Hz with 9.8 m/s2 acceleration for 30 min in each of X, Y, and Z directions |
||
|
Shock resistance (during operation) |
147 m/s2 3 times in each of X, Y, and Z directions. |
||
|
Dimensions |
184.1 ×144.1 ×52.3 mm (W ×H ×D) |
130.1 ×104.8 ×55.4 mm (W ×H ×D) |
|
|
Panel cutout dimensions |
Width 172.40+1 ×Height 132.40+1 mm Panel thickness: 1.6 to 2.5 mm |
Width 118.50+1 ×Height 92.50+1 mm Panel thickness: 1.6 to 2.5 mm |
|
|
Weight |
900 g max. |
500 g max. |
|
|
Enclosure rating |
Front panel: IP65 Oil-proof type (See note 3.) |
||
|
Battery life |
5 years (at 25°C) (See note 4.) |
||
|
International standards |
EC Directives UL508 |
||

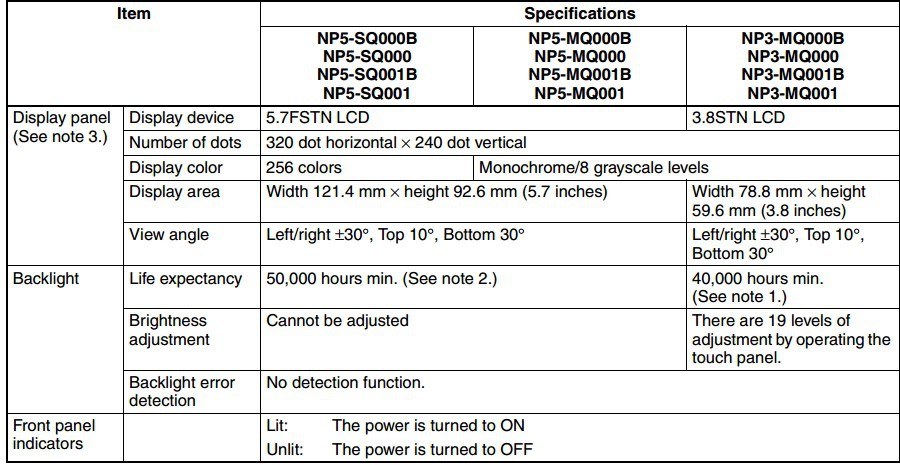

Display Specifications
Note
(1) This is the estimated time when the luminous intensity is decreased by 40% per LED at room temperature and humidity. It is not a guaranteed value.
(2) The life expectancy is given only as a guideline. It is not a guaranteed value. The life of the backlight will be much shorter at low temperatures.
(3) There may be some defective pixels in the display. This is not a fault as long as the numbers of defective light and dark pixels fall within the following standard ranges.
Number of light and dark pixels: 0.2 < (minor axis + major axis) / 2 ≤0.55 mm (within 1 per 20-mm square)

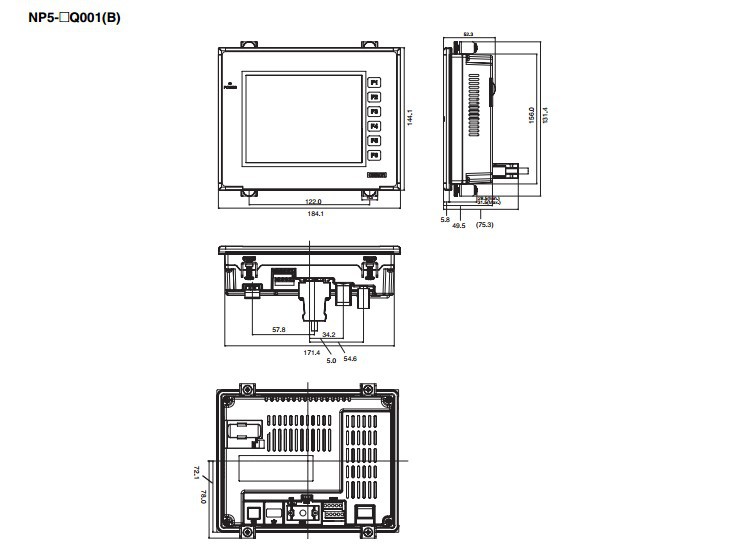

Dimensions
