Item

Specifications

NP5-SQ000B/NP5-SQ000

NP5-SQ001B/NP5-SQ001

NP5-MQ000B/NP5-MQ000

NP5-MQ001B/NP5-MQ001

NP3-MQ000B/NP3-MQ000

NP3-MQ001B/NP3-MQ001

Rated power supply voltage

24 VDC

Allowable voltage range

21.6 to 27.6 VDC (24 VDC –10% to +15%)

Allowable input power interruption time

No restriction.

Power consumption

12 W max.

Ambient operating temperature

0 to 50°C (See notes 1 and 2.)

Storage temperature

–20 to +60°C (See note 2.)

Ambient operating humidity

35 to 85%RH with no condensation (0 to 40°C) (See notes 2.)

35 to 50%RH with no condensation (40 to 50°C) (See notes 2.)

Operating environment

No corrosive gases.

Noise immunity

Conforms to IEC61000-4-4, 2 KV (power lines)

Vibration resistance (during

operation)

5 to 9 Hz with 3.1 mm amplitude and 9 to 150 Hz with 9.8 m/s2 acceleration for 30 min in each of X, Y, and Z directions

Shock resistance (during

operation)

147 m/s2  3 times in each of X, Y, and Z directions.

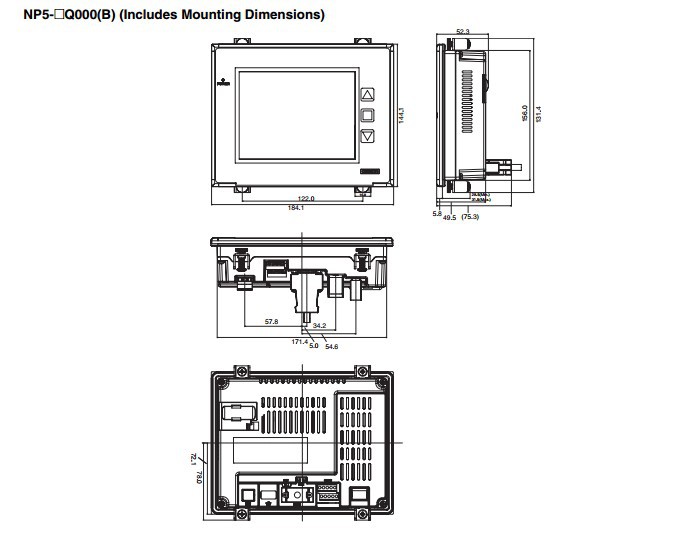

Dimensions

184.1 ×144.1 ×52.3 mm (W ×H ×D)

130.1 ×104.8 ×55.4 mm

(W ×H ×D)

Panel cutout dimensions

Width 172.4₀⁺¹ ×Height 132.4₀⁺¹ mm

Panel thickness: 1.6 to 2.5 mm

Width 118.5₀⁺¹ ×Height 92.5₀⁺¹ mm

Panel thickness: 1.6 to 2.5 mm

Weight

900 g max.

500 g max.

Enclosure rating

Front panel: IP65 Oil-proof type (See note 3.)

Battery life

5 years (at 25°C) (See note 4.)

International standards

EC Directives UL508
