NEMA 23 1N.m 142ozf.in Integrated Closed Loop Stepper motor 36VDC JMC iHSS57-36-10

  • Model: iHSS57-36-10
  • Shipping Weight: 1.5Kg
  • In Stock:47
  • Manufactured by: JMC
Qty:          Favorite

Payment method Shipping method Contact us


0 reviews

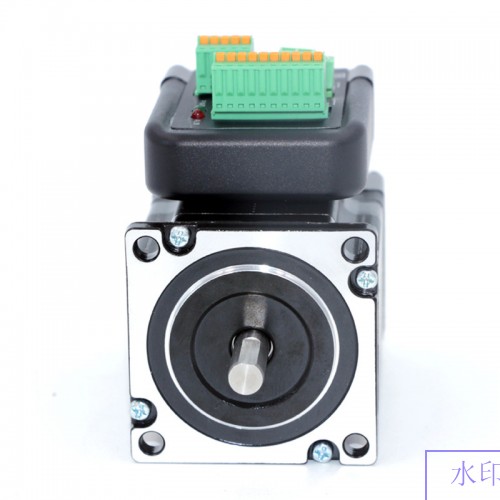

NEMA 23 1N.m 142ozf.in Integrated Closed Loop Stepper motor 36VDC JMC iHSS57-36-10



  • Integrated compact size for saving mounting space
  • Without losing step, High accuracy in positioning
  • 100% rated output torque
  • Variable current control technology, High current efficiency
  • Small vibration, Smooth and reliable moving at low speed
  • Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
  • User-defined micro steps
  • No adjustment in general applications
  • Over current, over voltage and over position error protection
  • Green light means running while red light means protection or off line



Typical applications

CNC, Printing, lazer, textile machine, etc.



Introduction:

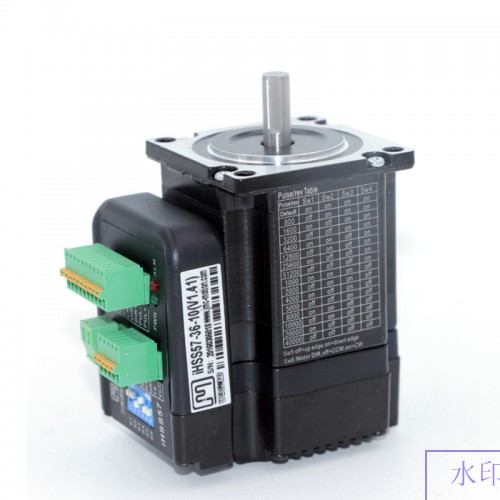

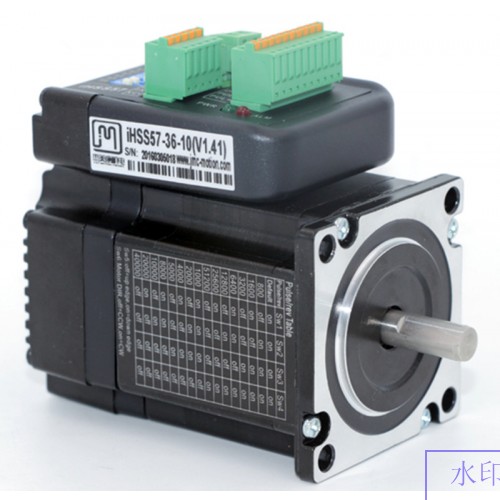

JMC IHSS57 Integrated Closed Loop Stepper Motor is all-in-one closed loop stepper system which integrates closed loop stepper motor with digital driver. Servo control and digital stepper driving technology are perfectly merged into this smart system. Optical encoder with high speed position sampling feedback of 50μs built inside, can help system avoid losing-step, greatly improve low-speed instability and reduces noise. This Series products have the advantages of both stepper and servo, features in low heat, smooth motion, fast response, high speed and big torque output.



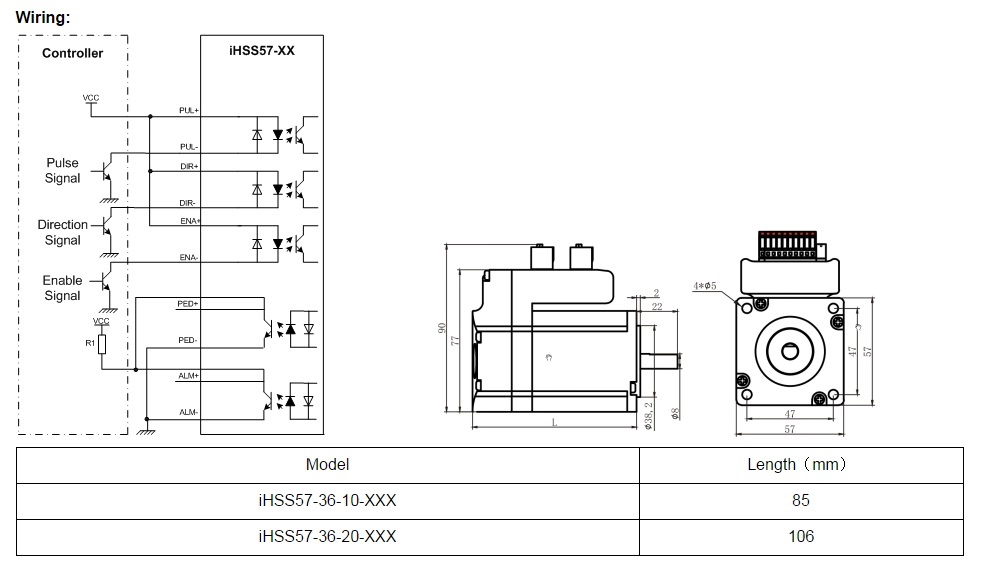

Technical Specifications:

Input Voltage

24~50VDC(36V Typical)

Output Current

4.5A 20KHz PWM

Pulse Frequency max

200K

Communication rate

57.6Kbps



Protection

l Over current peak value 8A±10%

l Over voltage value 80V

l The over position error range can be set through the HISU





Environment

 Specifications

Environment

Avoid dust, oil fog and corrosive gases

Operating Temperature

70℃ MAX

Storage Temperature

-20℃~+65℃

Humidity

40~90%RH

Cooling method

Natural cooling or forced air cooling



Microstep Setting:

The micro steps setting is in the following table,  while SW1、SW2、SW3、SW4 are all on, the internal default micro steps inside is activate,this ratio can be setting through the HISU.

  Dial switch

Micro steps

SW1

SW2

SW3

SW4

Default

on

on

on

on

800

off

on

on

on

1600

on

off

on

on

3200

off

off

on

on

6400

on

on

off

on

12800

off

on

off

on

25600

on

off

off

on

51200

off

off

off

on

1000

on

on

on

off

2000

off

on

on

off

4000

on

off

on

off

5000

off

off

on

off

8000

on

on

off

off

10000

off

on

off

off

20000

on

off

off

off

40000

off

off

off

off
