NB10W-TW01B 10.1inch touch screen HMI new in stock
- Model: NB10W-TW01B
- Shipping Weight: 4Kg
- In Stock:10
- Manufactured by: Omron
0 reviews
| NB10W-TW01B 10.1inch touch screen HMI new in stock |
Specifications
|
Specifications |
NB3Q |
NB5Q |
NB7W |
NB10W |
|||
|
TW00B |
TW01B |
TW00B |
TW01B |
TW00B |
TW01B |
TW01B |
|
|
Display type |
3.5" TFT LCD |
5.6" TFT LCD |
7" TFT LCD |
10.1" TFT LCD |
|||
|
Display resolution |
320 × 240 |
320 × 234 |
800 × 480 |
800 × 480 |
|||
|
Number of colors |
65,536 |
||||||
|
Backlight |
LED |
||||||
|
Backlight lifetime |
50,000 hours of operating time at the normal temperature (25 °C) * |
||||||
|
Touch panel |
Analog resistance membrane, resolution 1024 × 1024, life: 1 million touch operations |
||||||
|
Dimensions in mm |
103.8 × 129.8 × 52.8 |
142 × 184 × 46 |
148 × 202 × 46 |
210.8 × 268.8 × |
|||
|
Weight |
300 g max. |
305 g max. |
620 g max. |
627 g max. |
710 g max. |
715 g max. |
1525 g max. |
* This is the estimated time when the luminous intensity is decreased by 50% per LED at room temperature and humidity.
It is a typical value.
Functionality
|
Specifications |
NB3Q |
NB5Q |
NB7W |
NB10W |
|||
|
TW00B |
TW01B |
TW00B |
TW01B |
TW00B |
TW01B |
TW01B |
|
|
Internal memory |
128MB (including system area) |
||||||
|
Memory interface |
--- |
USB Memory |
--- |
USB Memory |
--- |
USB Memory |
USB Memory |
|
Serial (COM1) |
RS-232C/422A/485 |
RS-232C, |
|||||
|
Serial (COM2) |
--- |
RS-232C/422A/485 (not isolated), |
|||||
|
USB Host |
Equivalent to USB 2.0 full speed, type A, Output power 5V, 150mA |
||||||
|
USB Slave |
Equivalent to USB 2.0 full speed, type B, Transmission distance: 5m |
||||||
|
Printer connection |
PictBridge support |
||||||
|
Ethernet |
--- |
10/100 base-T |
--- |
10/100 base-T |
--- |
10/100 base-T |
10/100 base-T |
|
Line voltage |
20.4 to 27.6 VDC (24 VDC −15 to 15%) |
||||||
|
Power consumption |
5 W |
9 W |
6 W |
10 W |
7 W |
11 W |
14 W |
|
Battery lifetime |
5 years (at 25 °C) * |
||||||
|
Enclosure rating (front side) |
Front operation part: IP65 (Dust proof and drip proof only from the front of the panel) |
||||||
|
Obtained standards |
EC Directives, KC, cUL508 |
||||||
|
Operating environment |
No corrosive gases. |
||||||
|
Noise immunity |
Compliant with IEC61000-4-4, 2KV (Power cable) |
||||||
|
Ambient operating temperature |
0 to 50 °C |
||||||
|
Ambient operating humidity |
10% to 90% RH (without condensation) |
||||||

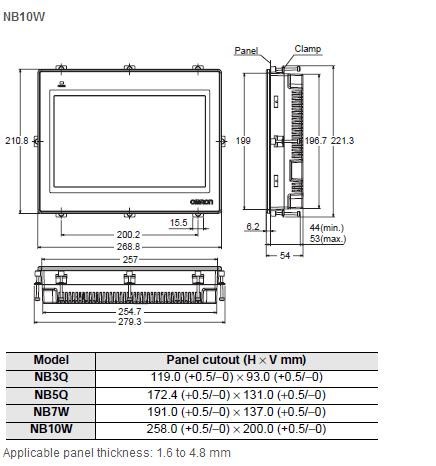

Dimensions
