MS-130ST-M10015BZ-41P5+DS2-41P5-AS 380VAC 1.5KW 10NM 1500rpm AC Servo Motor Drive kits Keywaybrake with 3M cable

  • Model: MS-130ST-M10015BZ-41P5+DS2-41P5
  • Shipping Weight: 19Kg
  • In Stock:10
  • Manufactured by: Xinje
Qty:          Favorite

Payment method Shipping method Contact us


0 reviews


380VAC 1.5KW 10NM 1500rpm MS-130ST-M10015BZ-41P5+DS2-41P5-AS AC Servo Motor Drive kits Keyway brake with 3M cable

Package Content:

1*Motor+Drive: MS-130ST-M10015B-41P5+DS2-41P5-AS

1* 3M Encoder Cable &Power Cable

1 Motor Specifications

Voltage level

380V

Motor type name

MS-130ST-M10015BZ-41P5

Motor code

0144

Rated power (KW)

1.5

Rated current (A)

3.5

Rated speed (rpm)

1500

Max speed(rpm

2000

Rated torque(N·m)

10

Peak torque(N·m

25

Back EMF constat (V/krpm)

177

Torque coefficient (N·m/A)

2.86

Rotor inertia (Kg·m 2 )

1.94×10 -3

Winding resistor (Ω)

4.37

Winding inductance (mH)

15.00

Electrical time constant (ms)

3.46

Weight(Kg)

11.5

Encoder ppr(PPR)

2500

Pole pairs

4

Motor insulation level

Class B(130° C)

Protection level

IP65

Ambient

Temperature

-20° C ~ + 50° C

Humidity

Relative humidity <90% (no condensation)

2  Drive Specifications

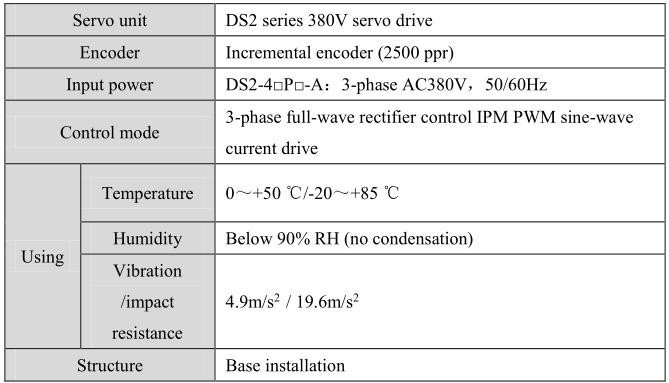

MS-130ST-M10015B-41P5+DS2-41P5-AS--1

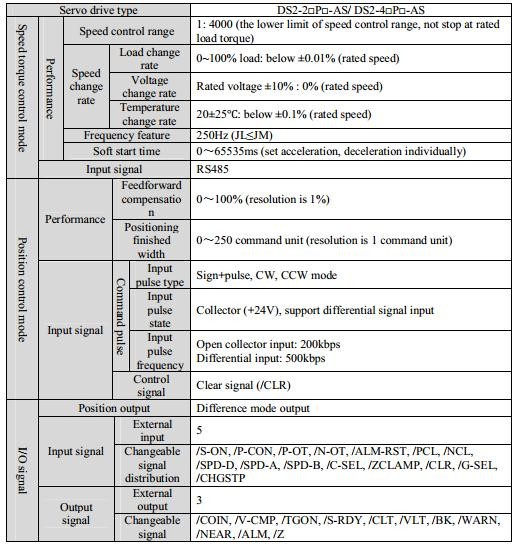

MS-130ST-M10015B-41P5+DS2-41P5-AS--2
