MD400F640PD1A MD400F640PD2A Heidelberg 9.4" CP Tronic Display Compatible LCD panel for CD/SM102 PM/SM74 MO/SM52 presses new
Support part number: M3.036.387 / 00.785.0353
Compatible plasma models:
1) MD400F640PD1A plasma screen
2) OKAYA PG640400RA4-3 plasma screen
3) OKI PG640400RA4 plasma screen .
and nearly all other CP Tronic Display.
If you are not sure about it, just feel free to contact with us.
All the display are tested in good condition before shipment. 1 year warranty.
How to install :
CP window screen is absolutely compatible and original plasma screen refresh rate exactly the same, except that the colors and stronger contrast, higher contrast and more detailed.
After installation, the interface, fonts and patterns with the original graphics exactly the same. Words and graphics 8 colors adjustable background color 8-color adjustable color are: red, green, blue, yellow, blue, purple, black, white.
Installation is simple, just after the original plasma screen in the original and other original interface cable ions removed
Direct (interface without any changes) to the CP window panel interfaces,
The CP window fully supports 16-pin and 20-pin variety CP TRONIC screen interface model. That is 100% support of all CP TRONIC models. The CP window with adaptive function, automatic identification signal that the two models
1) Remove the damaged plasma screen from frame
2) use of the original four M4 screws to PG400640RA9-LED CP compatible screen window fixed and mounted on the frame
3) collated screen frame line, attached to the back of the control panel

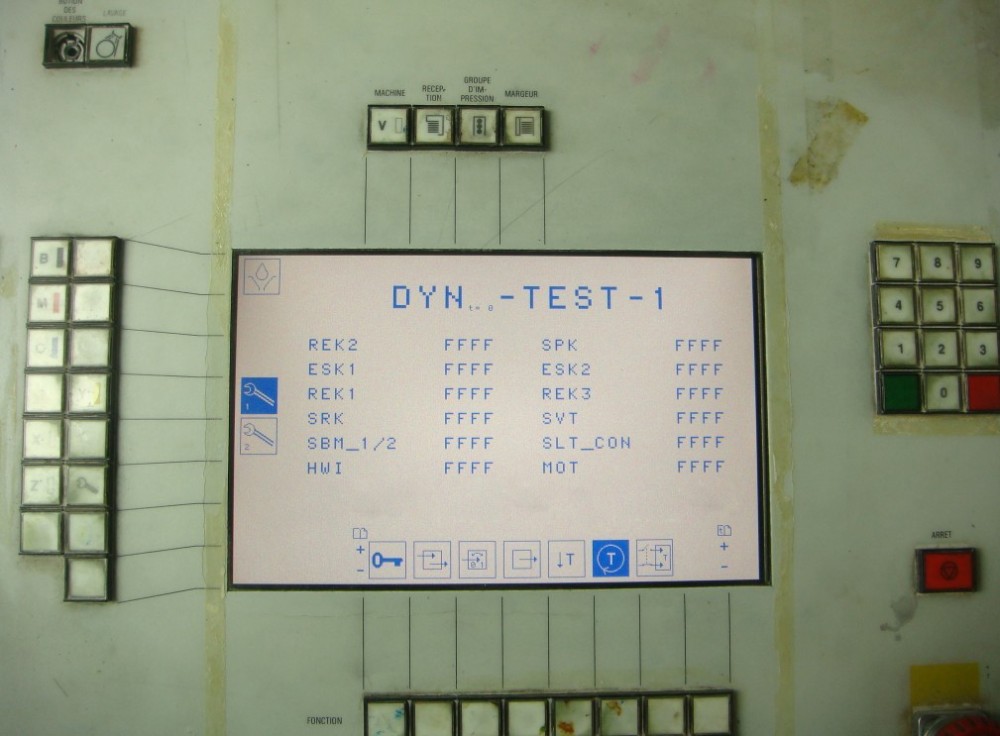

4) the effect after installation system displays
