LQ10DH11-K 10.4" LCD panel Compatible LQ10DH11 LQ10D021 new


1. Application

This is the substitute goods that we copied SHARP LQ10DH11 to produce in the year 2011, and now this goods have been widely used in all kind of machines.This product applies computer peripheral, industrial meter, and communication

2. Features

. Compatible with VGA-480, VGA-400, VGA-350 and free format.

. Pixel in stripe configuration

. Slim and compact

. Display Colors:1024 colors

. Active area / Outline area =  62.3 %

. Viewing Direction:  6 o’clock

. Backlight :LED

3. Mechanical Specifications

Parameter

Specifications

Unit

Screen Size

10.4 (diagonal)

inch

Display Format

640×R, G, B×480

dot

Active Area

215(H)×162 (V)

mm

Dot Pitch

0.0675 (H)×0.203 (V)

mm

Pixel Pitch

0.203 (H)×0.203 (V)

mm

Pixel Configuration

Stripe



Outline Dimension

282(W)X217(H)X14(D)

mm

Weight

980

g

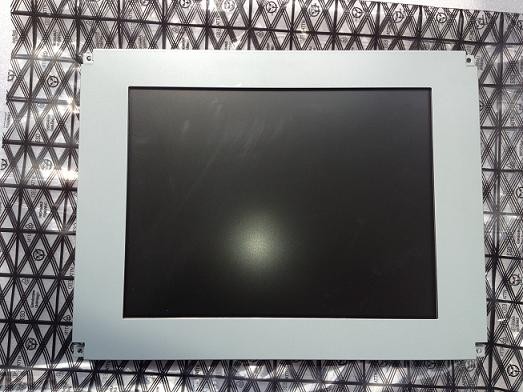

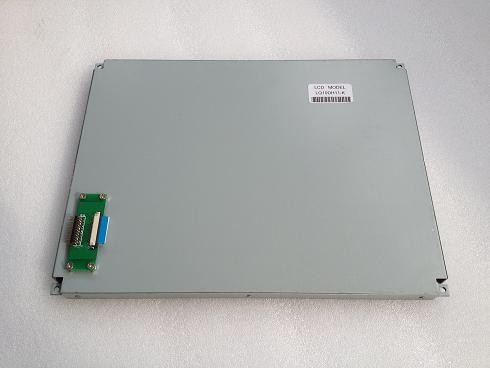

4. graphics of TFT-LCD Module :LQ10DH11-K

1

2

5.Input / Output Terminals

5-1) TFT-LCD Panel Driving

Pin No.

Symbol

Function

Remark

1

 CLK

Ground (0V)



2

GND

Clock Signal for Sampling Image Digital Data



3

R0

Red  Image Data Signal



4

R1

Red  Image Data Signal



5

R2

Red  Image Data Signal (LSB)



6

GND

Ground (0V)



7

G0

Green  Image Data Signal



8

G1

Green  Image Data Signal



9

G2

Green  Image Data Signal (LSB)



10

GND

Ground (0V)



11

B0

Blue  Image Data Signal



12

B1

Blue  Image Data Signal



13

B2

Blue  Image Data Signal (LSB)



14

GND

Ground (0V)



15

HV

Horizontal Synchronous Signal



16

GND

Ground (0V)



17

VS

Vertical Synchronous Signal



18

VCC

Green  Image Data Signal (MSB)



19

NC

Not connected



20

NC

Not connected



21

NC

Not connected



22

NC

Not connected



34
LQ10DH11-K Interface board


Note 5-1 : The TFT-LCD module is compatible with four kinds of VGA timing. They are VGA-480, VGA-400, VGA-350 and freedom mode. The polarization of Hsync and Vsync determine the timings.





VGA-480

VGA-400

VGA-350

Freedom Mode

Hsync Polarization

Negative

Negative

Positive

Positive

Vsync Polarization

Negative

Positive

Negative

Positive

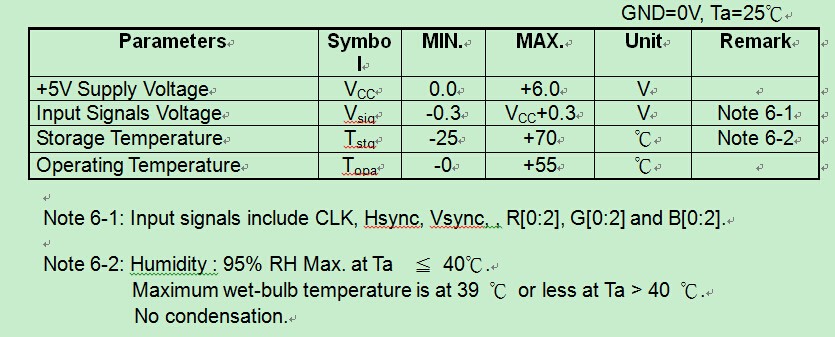

6.Absolute Maximum Ratings:

121212

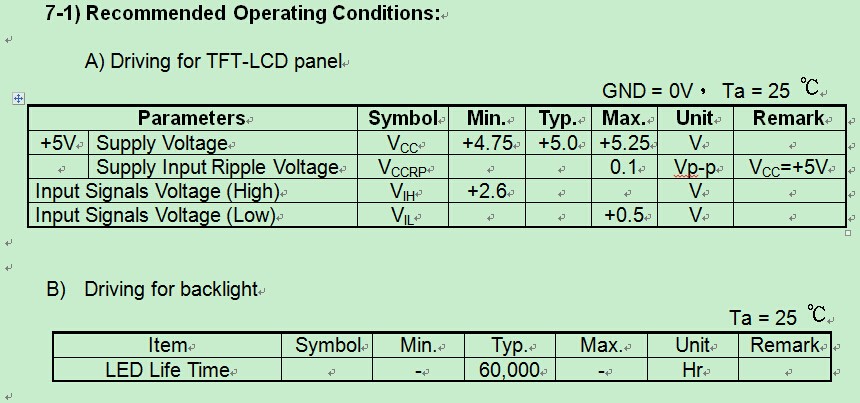

7. Electrical Characteristics

1213

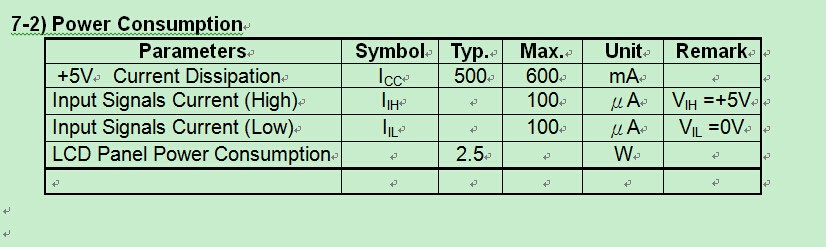

14

7-3) Input / Output signal timing chart

Parameters

Symbol

Format

Min.

Typ.

Max.

Unit

Note



Frequency

Fc=1/Tc

All



25.175



MHz

Note 7-4

Clock

High Time

Tckh

All

10





ns





Low Time

Tckl

All

10





ns





Periodic = Line

Thp

All



31.778



μs

Note 7-4

Hsync









800

1024

clock

Note 7-4



Pulse Width

Thpw

All

2

96

200

clock





Back Porch

Thbp

All

2

48

64

clock









VGA-480

515

525

1024

line

Note 7-4



Periodic = Frame

Tvp

VGA-400

447

449

1024

line

Note 7-4







VGA-350

447

449

1024

line

Note 7-4

Vsync





Freedom Mode





1024

line





Pulse Width

Tvpw

All

1

2



line





Back Porch

Tvbp

All

1



64

line



Data

Setup Time

Tds

All

10





ns





Hold Time

Tdh

All

10





ns





Periodic = Line

Tep

All



800

1024

clock





Pulse Width (H)

Tepw

All

2

640

800

clock























Display Line No(V)

Tvd

VGA-400

400

400



line









VGA-350

350

350



line









Freedom Mode



480



line



Horizontal Display Periodic

Thd

All

640

640

640

clock



Hsync-CLK

Phase Difference

Thc

All

10



Tc-10

ns



Vsync-Hsync

Phase Difference

Tvh

All

1



Thp-1

clock

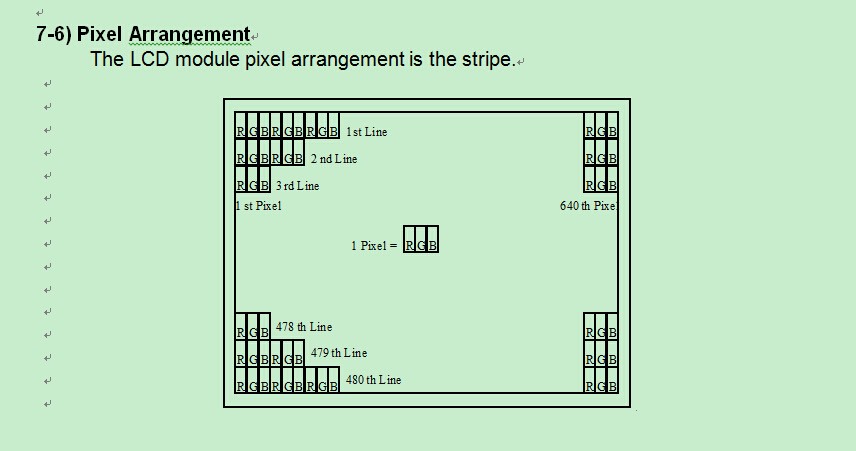

15

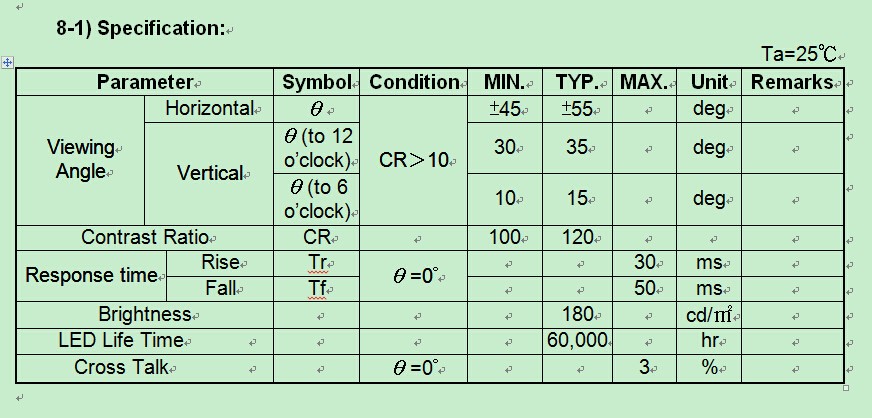

8. Optical Characteristics

17

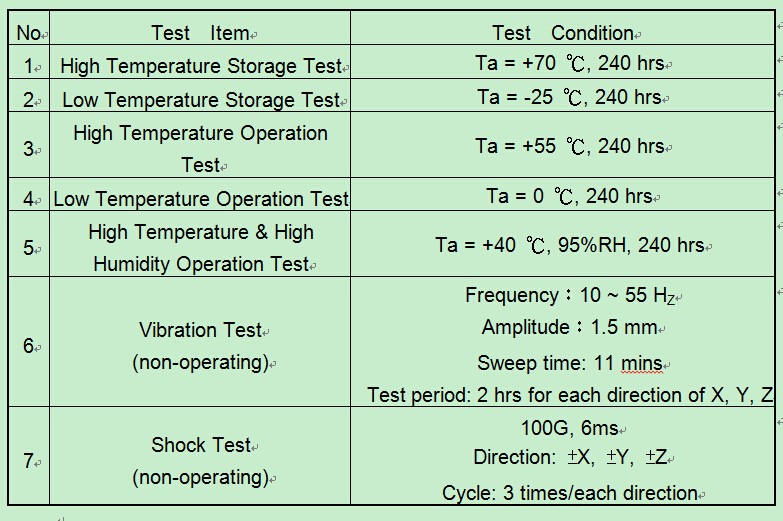

9. Reliability Test

19
