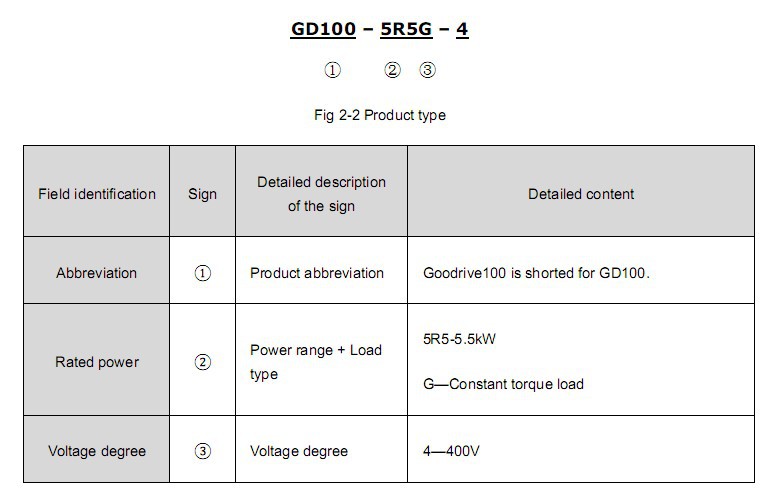

Model NO.

Output Power

(kw)

Input Current (A)

Output Current (A)

Carrier Frequency (kHz)

GD100-0R7G-4

0.75

3.4

2.5

2~15(8)

GD100-1R5G-4

1.5

5.0

3.7

2~15(8)

GD100-2R2G-4

2.2

5.8

5

2~15(8)

GD100-004G-4

4

13.5

9.5

2~15(8)

GD100-5R5G-4

5.5

19.5

14

2~15(8)

GD100-7R5G-4

7.5

25

18.5

2~15(8)

GD100-011G-4

11

32

25

2~15(8)

GD100-015G-4

15

40

32

2~8(4)

Function

Specification

Power input

Input voltage (V)

AC 3PH 400V±15%

Input current (A)

Refer to the rated value

Input frequency (Hz)

50Hz or 60Hz Allowed range: 47~63Hz

Power

output

Output voltage (V)

0~input voltage

Output current (A)

Refer to the rated value

Output power (kW)

Refer to the rated value

Output frequency (Hz)

0~400Hz

Technical

control

feature

Control mode

V/F, sensorless vector control

Motor type

Asynchronous motor

Adjustable-speed ratio

Asynchronous motor 1:100 (SVC)

Speed control accuracy

+-0.2%  (sensorless vector control)

Speed fluctuation

+- 0.3% (sensorless vector control)

Torque response

<20ms (sensorless vector control)

Torque control accuracy

10%(sensorless vector control)

Starting torque

0.25Hz/150%(sensorless vector control)

Overload capability

150% of rated current: 1 minute

Running

control

feature

Frequency setting

method

Digital  setting,  analog  setting,  pulse frequency  setting, multi-stage speed running setting, simple PLC setting, PID setting, MODBUS communication setting

Realize the shifting between the  set  combination and set channel.

Auto-adjustment of the

voltage

Keep a stable voltage automatically when the grid voltage

transients

Fault protection

Provide over 30 fault protection functions:  over current,

Over voltage,  under voltage, overheating,  phase loss and

overload, etc.

Restart after rotating

speed tracking

Realize the smooth starting of the rotating motor

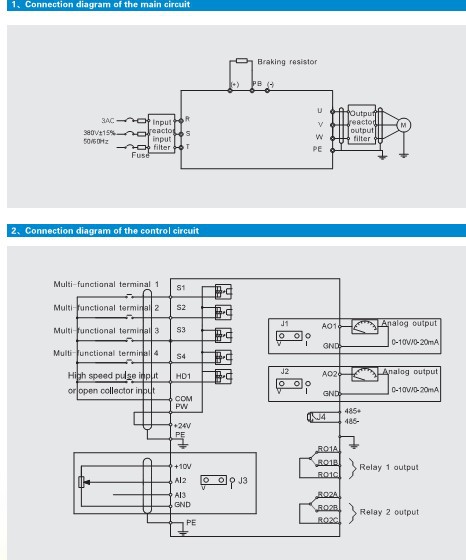

Peripheral

interface

Terminal analog input

resolution

Not above 20mV

Terminal switch input

resolution

Not above 2ms

Analog input

1 channels  (AI2) 0~10V/0~20mA and 1 channel (AI3) -

10~10V

Analog output

2 channels (AO1, AO2) 0~10V /0~20mA

Digital input

4 channels common input, the Max. frequency: 1kHz,

internal impedance:3.3kΩ;

1 channel high speed input, the Max. frequency: 50kHz

Relay output

2 channels programmable relay output

RO1A NO, RO1B NC, RO1C common terminal

RO2A NO, RO2B NC, RO2C common terminal

Contactor capability: 3A/AC250V

Others

Mountable method

Wall mountable and flange mountable

Temperature of the

running environment

-10~50⁰C, derate above 40⁰C

Average non-fault time

2 years (25⁰C ambient temperature)

Protective degree

IP20

Cooling

Cooling

Braking unit

Embedded

EMC filter

Built-in C3 filter: meet  the degree requirement of

IEC61800-3 C3

External filter:meet  the degree requirement of  IEC61800-3

C2
