FR-F720-15K FR-F700 VFD Inverter input 3 phase 220V output 3 ph 200~240V 49A 15KW 0.5~400Hz with keypad new
- Model: FR-F720-15K
- Shipping Weight: 9Kg
- In Stock:20
- Manufactured by: Mitsubishi
0 reviews
FR-F720-15K
Specification
|
Type FR-F720- K |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
75 |
90 |
110 |
||
|
Applicable motor capacity (kW)*1 |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
75 |
90 |
110 |
||
|
Output |
Rated capacity (kVA)*2 |
1.6 |
2.7 |
3.7 |
5.8 |
8.8 |
11.8 |
17.1 |
22.1 |
27 |
32 |
43 |
53 |
65 |
81 |
110 |
132 |
165 |
|
|
Rated current (A)*3 |
4.2(3.6) |
7.0(6.0) |
9.6(8.2) |
15.2(13) |
23(20) |
31(26) |
45(38) |
58(49) |
70(60) |
85(72) |
114(97) |
140(119) |
170(145) |
212(180) |
288(248) |
346(294) |
432(367) |
||
|
Overload current rating*4 |
120% for 60s, 150% for 3s (inverse time characteristics) |
||||||||||||||||||
|
Voltage*5 |
Three-phase 200 to 240V |
||||||||||||||||||
|
Power supply |
Rated input AC voltage/frequency |
Three-phase 200 to 220V 50Hz, 200 to 240V 60Hz |
|||||||||||||||||
|
Permissible AC voltage fluctuation |
170 to 242V 50Hz, 170 to 264V 60Hz |
||||||||||||||||||
|
Permissible frequency fluctuation |
±5% |
||||||||||||||||||
|
Power supply system capacity (kVA)*6 |
Without DC reactor |
2.1 |
4.0 |
4.8 |
8.0 |
11.5 |
16 |
20 |
27 |
32 |
41 |
52 |
65 |
79 |
99 |
- |
- |
- |
|
|
With DC reactor |
1.2 |
2.6 |
3.3 |
5.0 |
8.1 |
10 |
16 |
19 |
24 |
31 |
41 |
50 |
61 |
74 |
110 |
132 |
165 |
||
|
Protective structure (JEM 1030)*8 |
Enclosed type (IP20)*7 |
Open type (IP00) |
|||||||||||||||||
|
Cooling system |
Selfcooling |
Forced air cooling |
|||||||||||||||||
|
Approx. mass (kg) |
1.8 |
2.2 |
3.5 |
3.5 |
3.5 |
6.5 |
6.5 |
7.8 |
13 |
13 |
14 |
23 |
35 |
35 |
67 |
70 |
70 |
||
*1 The applicable motor capacity indicated is the maximum capacity applicable for use of the Mitsubishi 4-pole standard motor.
*2 The rated output capacity indicated assumes that the output voltage is 220V.
*3 When operating the inverter with the carrier frequency set to 3kHz or more, the carrier frequency automatically decreases if the inverter
output current exceeds the value in parenthesis of the rated current. This may cause the motor noise to increase.
*4 The % value of the overload current rating indicated is the ratio of the overload current to the inverter's rated output current. For repeated
duty, allow time for the inverter and motor to return to or below the temperatures under 100% load.
*5 The maximum output voltage does not exceed the power supply voltage. The maximum output voltage can be changed within the setting
range. However, the pulse voltage value of the inverter output side voltage remains unchanged at about that of the power supply.
*6 The power supply capacity varies with the value of the power supply side inverter impedance (including those of the input reactor and
cables).
*7 When the hook of the inverter front cover is cut off for installation of the plug-in option, the inverter changes to an open type ().
*8 FR-DU07: IP40 (except for the PU connector)

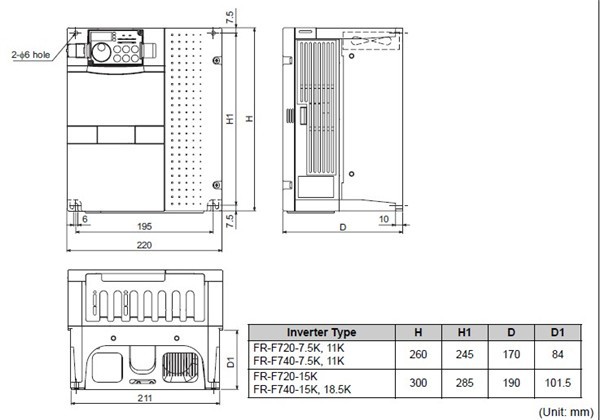

Dimensions
