CP1E-N60S1DT-D PLC CP1E CPU unit DC24V 36 DI 24 DO Transistor new in box

The E**(S)-type Basic CPU Units provide cost performance and easy application with only basic functionality.

The N**(S*) and NA-types Application CPU Units support Programmable Terminal connection, position control, and inverter connection

Features

New CP1E CPU Units now available.

Lineup including CPU Units with built-in three ports: USB, RS-232C, RS-485.

The depth of CPU Units with RS-232C connectors is reduced by 20 mm. (N30/40/60S(1))

Easy connection with computers using commercially available USB cables.

With E30/40/60(S), N30/40/60 or NA20 CPU Units, Add I/O, Analog I/O or Temperature Inputs by Connecting

Expansion Units or Expansion I/O Units.

Input interrupts

Complete High-speed Counter Functionality.

Versatile pulse control for Transistor Output for N14/20/30/40/60 or NA20 CPU Units.

PWM Outputs for Transistor Output for N14/20/30/40/60(S@) or NA20 CPU Units.

Mounting Serial Option Boards or Ethernet Option Board to N30/40/60 or NA20 CPU Units.

Built-in analog I/O, two inputs and one output, for NA-type CPU Units.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

parameter specification

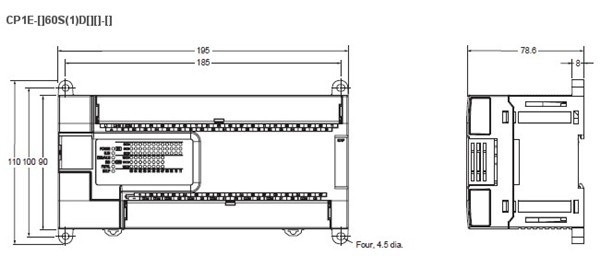

Dimension
