CJ1W-PTS15 PLC Insulation thermocouple input unit new in box

  • Model: CJ1W-PTS15
  • Shipping Weight: 0.7Kg
  • In Stock:20
  • Manufactured by: Omron
Qty:          Favorite

Payment method Shipping method Contact us


0 reviews


CJ1W-PTS15 PLC Insulation thermocouple input unit new in box

Features

Supports a maximum of four inputs in one Unit: resistance thermometer, thermocouple, and DC current/voltage. (The input type is set separately for each input.)

Isolation between input channels prevents unwanted current paths between input channels.

Scaled values are transferred to the CPU Unit in four digits hexadecimal with voltage/current inputs.

Process value alarm with two alarms for each input

Alarm ON-delay timer and hysteresis for process value

Zero/Span adjustment capability during operation

Input error detection

Maximum or minimum process value can be specified for when an input error is detected.

A Unit with fully universal inputs, high-speed and high-resolution (256,000 resolution, 60 ms/ch is available.)

Speicification

Unit
classi-
fica-
tion

Product
name

Input
points

Signal
range
selec-
tion

Signal
range

Conver-
sion
speed
(resolu-
tion)

Accuracy
(at
ambient
tempera-
ture of
25 °C)

Ex-
ternal
con-
nec-
tion

No.
of
unit
num-
bers
allo-
cated

Current
consump-
tion (A)

Model

Stand-
ards


V

24
V

CJ1
Special
I/O
Units

Process
Input
Units
(Iso-
lated-
type
Thermo-
couple
Input
Units)


inputs

Set
sepa-
rately
for
each
input

Thermo-
couple:
B, E, J,
K, L, N,
R, S, T,
U,
WRe5-
26, PLII
DC
voltage:
± 100
mV

Conver-
sion
speed:
10 ms/
2 inputs,
Resolu-
tion:
1/64,000

Standard
accuracy:
±0.05% of
F.S. *1

Remov-
able
terminal
block

1

0.18

0.06
*2

CJ1W-PTS15

UC1,
CE


inputs

Com-
mon
inputs

Thermo-
couple:
R, S, K,
J, T, L,
B

Conver-
sion
speed:
250 ms/
4 inputs

Accuracy:
(±0.3% of
PV or
±1°C,
whichever
is larger)
±1 digit
max. *3

0.25

---

CJ1W-PTS51

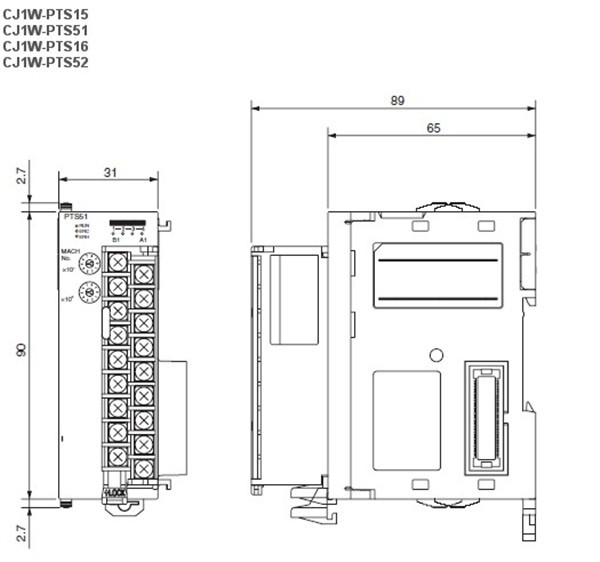

Dimension

CJ1W-PTS15
