CJ1W-PA205R PLC Power Unit AC100-240V new in box [CJ1W-PA205R]

CJ1W-PA205R PLC Power Unit AC100-240V new in box

Price:$20.00

Qty: Favorite

0 reviews

CJ1W-PA205R PLC Power Unit AC100-240V new in box

Features

The replacement notification function can prevent an overflow of the system due to the power lifetime. (CJ1W-PA205C only)

Power Supply Unit provides wide variations according to the system scale up to maximum 25 W.

Power Supply Unit provides wide variations according to the power supply (100 to 240 V AC/ 24 V DC) status.

The output contact during operation enables you to check the CPU operation. (CJ1W-PA205R only)

Conforming to the SEMI-F47 Standard. *

* AC input type, 200 V min. input.

Product name	Power supply voltage	Output capacity			Options			Model	Stand- ards
		5-VDC output capacity	24-VDC output capacity	Total power con- sumption	24-VDC service power supply	RUN output	Mainte- nance forecast monitor
AC Power Supply Unit	100 to 240 VAC	5 A	0.8 A	25 W	No	No	Yes	CJ1W-PA205C	UC1, N, L, CE
						Yes	No	CJ1W-PA205R
		2.8 A	0.4 A	14 W		No	No	CJ1W-PA202
DC Power Supply Unit	24 VDC	5 A	0.8 A	25 W		No	No	CJ1W-PD025
		2 A	0.4 A	19.6 W		No	No	CJ1W-PD022	UC1, CE

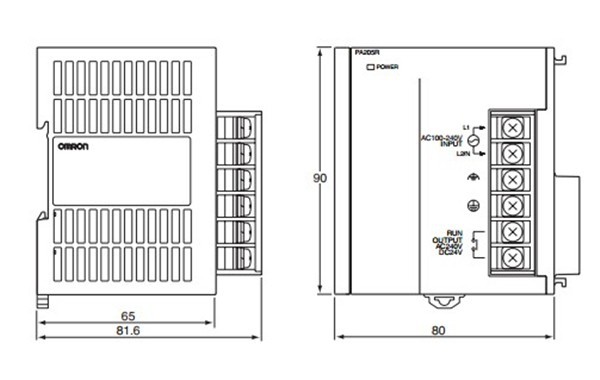

Dimension
