CJ1W-OD233 PLC Basic I/O Unit new in box [CJ1W-OD233]

CJ1W-OD233 PLC Basic I/O Unit new in box

Model: CJ1W-OD233
Shipping Weight: 0.7Kg
In Stock:20
Manufactured by: Omron

Price:$157.00

Qty: Favorite

Payment method Shipping method Contact us

0 reviews

CJ1W-OD233 PLC Basic I/O Unit new in box

Features

High-speed output models are available, meeting versatile applications.
ON Response Time: 15μs, OFF Response Time: 80μs

Output Units are available with any of three output types: relay contact outputs, triac outputs, or transistor outputs.

For transistor outputs, select from sinking outputs or sourcing outputs.

Output Units with load short-circuit protection are also available. *1

Select the best interface for each application: Fujitsu connectors or MIL connectors. *2

A wide variety of Connector-Terminal Block Conversion Units are available to allow you to easily wire external output devices.

*1. The following Units have load short-circuit protection: CJ1W-OC202, CJ1W-OD204, CJ1W-OD212, and
CJ1W-OD232.
*2. Available for models with 32 outputs or 64 outputs

Parameter specification

Unit type	Product name	Specifications					No. of words allo- cated	Current consump- tion (A)		Model	Stand- ards
Unit type	Product name	Output type	I/O points	Maximum switching capacity	Commons	External con- nection	No. of words allo- cated	5 V	24 V	Model	Stand- ards
CJ1 Basic I/O Units	Relay Contact Output Units	---	8 outputs	250 VAC/ 24 VDC, 2 A	Inde- pendent contacts	Removable terminal block	1 words	0.09	0.048 max.	CJ1W-OC201	UC1, N, L, CE
	Relay Contact Output Units	---	16 outputs	250 VAC/ 24 VDC, 2 A	16 points, 1 common	Removable terminal block	1 words	0.11	0.096 max.	CJ1W-OC211
	Triac Output Unit	---	8 outputs	250 VAC, 0.6 A	8 points, 1 common	Removable terminal block	1 words	0.22	---	CJ1W-OA201
	Tran- sistor Output Units	Sinking	8 outputs	12 to 24 VDC, 2 A	4 points, 1 common	Removable terminal block	1 words	0.09	---	CJ1W-OD201
		Sinking	8 outputs	12 to 24 VDC, 0.5 A	8 points, 1 common	Removable terminal block	1 words	0.10	---	CJ1W-OD203
		Sinking	16 outputs	12 to 24 VDC, 0.5 A	16 points, 1 common	Removable terminal block	1 words	0.10	---	CJ1W-OD211
		Sinking	16 outputs (High speed)	24 VDC, 0.5 A	16 points, 1 common	Removable terminal block	1 words	0.15	---	CJ1W-OD213	N, L, CE
		Sinking	32 outputs	12 to 24 VDC, 0.5 A	16 points, 1 common	Fujitsu connector	2 words	0.14	---	CJ1W-OD231	UC1, N, L, CE
		Sinking	32 outputs	12 to 24 VDC, 0.5 A	16 points, 1 common	MIL connector	2 words	0.14	---	CJ1W-OD233	UC1, N, L, CE
		Sinking	32 outputs (High speed)	24 VDC, 0.5 A	16 points, 1 common	MIL connector	2 words	0.22	---	CJ1W-OD234	N, L, CE
		Sinking	64 outputs	12 to 24 VDC, 0.3 A	16 points, 1 common	Fujitsu connector	4 words	0.17	---	CJ1W-OD261	UC1, N, L, CE
		Sinking	64 outputs	12 to 24 VDC, 0.3 A	16 points, 1 common	MIL connector	4 words	0.17	---	CJ1W-OD263
		Sourcing	8 outputs	24 VDC, 2 A Short- circuit protection	4 points, 1 common	Removable terminal block	1 words	0.11	---	CJ1W-OD202
		Sourcing	8 outputs	24 VDC, 0.5 A Short- circuit protection	8 points, 1 common	Removable terminal block	1 words	0.10	---	CJ1W-OD204
		Sourcing	16 outputs	24 VDC, 0.5 A Short- circuit protection	16 points, 1 common	Removable terminal block	1 words	0.10	---	CJ1W-OD212
		Sourcing	32 outputs	24 VDC, 0.5 A Short- circuit protection	16 points, 1 common	MIL connector	2 words	0.15	---	CJ1W-OD232
		Sourcing	64 outputs	12 to 24 VDC, 0.3 A	16 points, 1 common	MIL connector	4 words	0.17	---	CJ1W-OD262

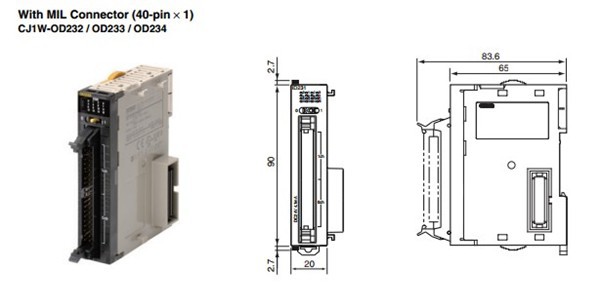

Dimension
