CJ1W-ID211 PLC Basic I/O Unit new in box

  • Model: CJ1W-ID211
  • Shipping Weight: 0.7Kg
  • In Stock:20
  • Manufactured by: Omron
Qty:          Favorite

Payment method Shipping method Contact us


0 reviews


CJ1W-ID211 PLC Basic I/O Unit new in box

Features

High-speed input models are available, meeting versatile applications.
ON Response Time: 15μs, OFF Response Time: 90μs

Use 24-VDC, 100-VAC, and 200-VAC models to connect to devices with different types of outputs.

The 24-VDC models can be connected to devices with either NPN or PNP outputs. There is no need to select the polarity. *1

A digital filter in the Unit can be set from 0 to 32 ms to reduce the influence of external noise.

Either a Fujitsu or MIL connector interface can be used. *2

Several models of Terminal Block Conversion Units are available, making it easy to connect to external devices.

*1. The same polarity is used for the same common.
*2. For models with 32 or 64 inputs.

Parameter specification

Unit
type

Product
name

Specifications

Current
consump-
tion (A)

Model

Stand-
ards

I/O
points

Input
voltage
and
current

Commons

External
con-
nection

No. of
words
allo-
cated

5 V

24 V

CJ1
Basic
I/O
Units

DC
Input
Units

8 inputs

12 to
24 VDC,
10 mA

Independent
contacts

Removable
terminal
block

1 word

0.09

---

CJ1W-ID201

UC1,
N, L,
CE

16 inputs

24 VDC,
7 mA

16 points,
1 common

Removable
terminal
block

1 word

0.08

---

CJ1W-ID211

16 inputs
(High
speed)

24 VDC,
7 mA

16 points,
1 common

Removable
terminal
block

1 word

0.13

---

CJ1W-ID212

N, L,
CE

32 inputs

24 VDC,
4.1 mA

16 points,
1 common

Fujitsu
connector

2 words

0.09

---

CJ1W-ID231

UC1,
N, L,
CE

32 inputs

24 VDC,
4.1 mA

16 points,
1 common

MIL
connector

2 words

0.09

---

CJ1W-ID232

32 inputs
(High
speed)

24 VDC,
4.1 mA

16 points,
1 common

MIL
connector

2 words

0.20

---

CJ1W-ID233

N, L,
CE

64 inputs

24 VDC,
4.1 mA

16 points,
1 common

Fujitsu
connector

4 words

0.09

---

CJ1W-ID261

UC1,
N, L,
CE

64 inputs

24 VDC,
4.1 mA

16 points,
1 common

MIL
connector

4 words

0.09

---

CJ1W-ID262

AC
Input
Units

8 inputs

200 to 24
VAC, 10 mA
(200 V,
50 Hz)

8 points,
1 common

Removable
terminal
block

1 words

0.08

---

CJ1W-IA201

16 inputs

100 to 120
VAC, 7 mA
(100 V,
50 Hz)

16 points,
1 common

Removable
terminal
block

1 words

0.09

---

CJ1W-IA111

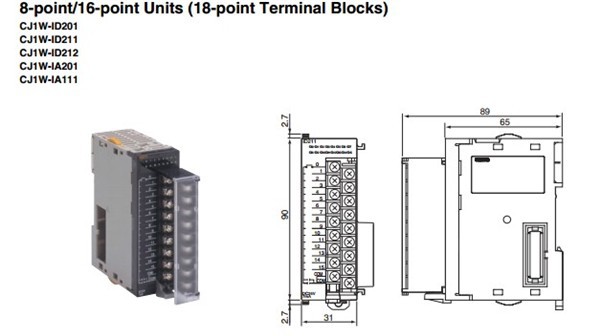

Dimension

CJ1W-ID211 dimension
