CJ1W-CRM21 PLC CompoNet master unit new in box [CJ1W-CRM21]

CJ1W-CRM21 PLC CompoNet master unit new in box

Price:$332.00

Qty: Favorite

0 reviews

CJ1W-CRM21 PLC CompoNet master unit new in box

Features

Setup is simple. Make the master's mode settings and set the baud rate, and you're ready to go.

Control up to 2,560 points and 384 nodes with one Master Unit.

Intuitive memory mapping with separate areas for Word Slave Units and Bit Slave Units.

Seven-segment display helps with startup and enables prompt detection of problems.

Collect information from Slave Units using message communications, or use message communications to set parameters.

Inherits the ease of use of the CompoBus/S.

Flexible I/O allocations with software setting function

Parameter specification

Name	Appear- ance	Specifications		Number of unit numbers allocated	Power consumption (A)		Model	Stand- ards
		Type of com- munications	Maximum number of I/O points per Master Unit		5-V system	26-V system
CS1 Special I/O Unit		Remote I/O communications Message communications	Word Slave Units: 1,024 inputs and 1,024 outputs (2,048 I/O points total) Bit Slave Units: 256 inputs and 256 outputs (512 I/O points total)	1, 2, 4, or 8	0.4	-	CS1W-CRM21	CE, U, U1, L, N

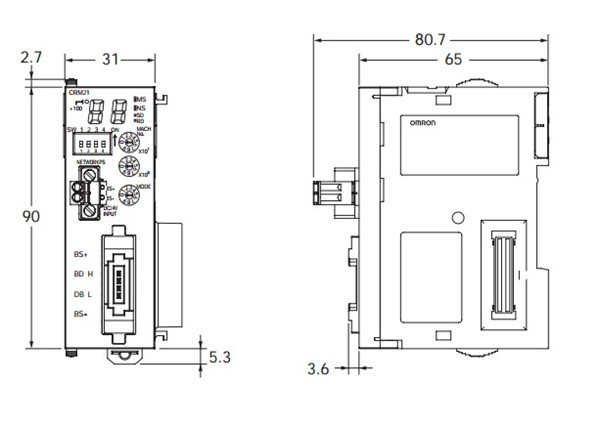

Dimension

CJ1W-CRM21
