AVF200-0022 Inverter 200V 1.5A 0.2KW 1 Phase New
- Model: AVF200-0022
- Shipping Weight: 2Kg
- In Stock:20
- Manufactured by: Panasonic
0 reviews
| AVF200-0022 Inverter 200V 1.5A 0.2KW 1 Phase New |
Model
Parameter
|
Part Number |
Applicable motor capacity (kW) |
Rated Output Current (a) |
Rated Output Capacity (KVA) |
Power Capacity (KVA) |
Power Supply |
Weight(kg) |
|
|
Operation panel |
Simple panel |
||||||
|
AVF200-0022 |
AVF200-0022P |
0.2 |
1.5 |
0.6 |
0.9 |
1-Phase 200V
|
1.0 |
|
AVF200-0042 |
AVF200-0042P |
0.4 |
2.5 |
1.0 |
1.3 |
1.0 |
|
|
AVF200-0072 |
AVF200-0072P |
0.75 |
4.2 |
1.7 |
2.3 |
1.4 |
|
|
AVF200-0152 |
AVF200-0152P |
1.5 |
7.0 |
2.8 |
3.6 |
1.6 |
|
|
AVF200-0222 |
AVF200-0222P |
2.2 |
10.0 |
4.0 |
5.0 |
2.1 |
|
|
AVF200-0074 |
AVF200-0074P |
0.75 |
2.1 |
1.7 |
2.6 |
3-Phase 400V |
1.6 |
|
AVF200-0154 |
AVF200-0154P |
1.5 |
4.0 |
3.2 |
4.8 |
1.7 |
|
|
AVF200-0224 |
AVF200-0224P |
2.2 |
5.5 |
4.4 |
6.4 |
1.9 |
|
|
AVF200-0374 |
AVF200-0374P |
3.7 |
8.7 |
6.9 |
10.4 |
2.0 |
|
|
AVF200-0554 |
AVF200-0554P |
5.5 |
12 |
9.6 |
13.6 |
3.5 |
|
|
AVF200-0754 |
AVF200-0754P |
7.5 |
17 |
13.5 |
17.6 |
3.6 |
|
|
AVF200-1104 |
AVF200-1104P |
11 |
22 |
17.5 |
21.1 |
6.8 |
|
|
AVF200-1504 |
AVF200-1504P |
15 |
31 |
24.5 |
27.7 |
|
7.0 |
Standard Specifications
1-phase 200 V Input Type
|
Items |
Specifications |
|
|
Standard output of applicable motor (kW) |
0.2 to 2.2 kW |
|
|
Rated output |
Rated voltage |
3-phase, 200 to 230 VAC (proportional to power supply voltage) |
|
Overload current rating |
150% of rated output current for 1 minute |
|
|
Input power supply |
Number of phases, voltage and frequency |
1-phase, 200 to 230 VAC, 50/60 Hz |
|
Allowable voltage fluctuation |
+10% and –15% of rated input AC voltage |
|
|
Allowable frequency fluctuation |
+-5% of rated input frequency |
|
|
Instantaneous voltage drop ride-through capability |
Operation continues when voltage is above 165 VAC. Operation continues for 15 ms when voltage drops below 165 VAC. |
|
3-phase 400 V Input Type
|
Items |
Specifications |
|
|
Standard output of applicable motor (kW) |
0.75 to 15 kW |
|
|
Rated output |
Rated voltage |
3-phase, 380 to 460 VAC (proportional to power supply voltage) |
|
Overload current rating |
150% of rated output current for 1 minute |
|
|
Input power supply |
Number of phases, voltage and frequency |
3-phase, 380 to 460 VAC, 50/60 Hz |
|
Allowable voltage fluctuation |
+10% and –15% of rated input AC voltage |
|
|
Allowable frequency fluctuation |
+-5% of rated input frequency |
|
|
Instantaneous voltage drop ride-through capability |
Operation continues when voltage is above 323 VAC. Operation continues for 15 ms when voltage drops below 323 VAC |
|

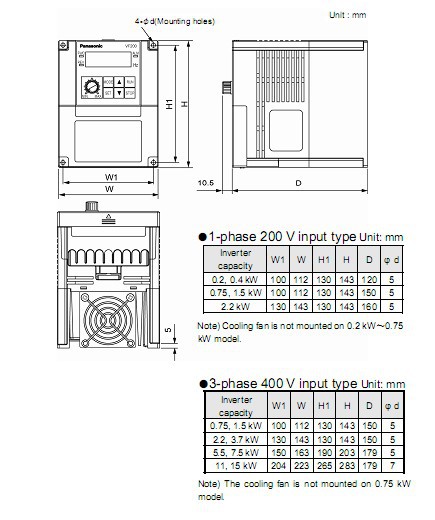

Dimension
