ATV312H037N4 VFD Inverter Input 3ph 380V Output 3ph 380V 1.5A 0.5~500Hz 0.37KW 0.5HP with EMC NEW
- Model: ATV312H037N4
- Shipping Weight: 3Kg
- In Stock:20
- Manufactured by: Schneider
![](images/star-on.png)
![](images/star-on.png)
![](images/star-on.png)
![](images/star-on.png)
![](images/star-on.png)
ATV312H037N4 VFD Inverter Input 3ph 380V Output 3ph 380V 1.5A 0.5~500Hz 0.37KW 0.5HP with EMC NEW |
ATV312H037N4
Brief Introduction
ATV312 drive - Variable speed drives for three-phase asynchronous motors from 0.18 to 15 kW - 600 V maximum power supply
Benefits
Very friendly and so communicating
Enhanced communication, Simplified user interface;
Numerous application-specific functions, Rugged for use in all environments
Three phase supply voltage: 380…500 V 50/60 Hz
For three phase output 380/500 V motors
Motor |
Line supply (input) |
Drive (output) |
Reference |
||||||
Power indicated on plate |
Max. current line |
Apparent power |
Max. inrush current |
Power dissipated at nominal current |
Nominal current |
Max. transient current |
|||
At 380 V |
At 500 V |
||||||||
kW |
HP |
A |
A |
kVA |
A |
W |
A |
A |
|
0.37 |
0.5 |
2.2 |
1.7 |
1.5 |
10 |
32 |
1.5 |
2.3 |
ATV312H037N4(5) |
0.55 |
0.75 |
2.8 |
2.2 |
1.8 |
10 |
37 |
1.9 |
2.9 |
ATV312H055N4(5) |
0.75 |
1 |
3.6 |
2.7 |
2.4 |
10 |
41 |
2.3 |
3.5 |
ATV312H075N4(5) |
1.1 |
1.5 |
4.9 |
3.7 |
3.2 |
10 |
48 |
3.0 |
4.5 |
ATV312HU11N4(5) |
1.5 |
2 |
6.4 |
4.8 |
4.2 |
10 |
61 |
4.1 |
6.2 |
ATV312HU15N4(5) |
2.2 |
3 |
8.9 |
6.7 |
5.9 |
10 |
79 |
5.5 |
8.3 |
ATV312HU22N4(5) |
3 |
3 |
10.9 |
8.3 |
7.1 |
10 |
125 |
7.1 |
10.7 |
ATV312HU30N4(5) |
4 |
5 |
13.9 |
10.6 |
9.2 |
10 |
150 |
9.5 |
14.3 |
ATV312HU40N4(5) |
5.5 |
7.5 |
21.9 |
16.5 |
15.0 |
30 |
232 |
14.3 |
21.5 |
ATV312HU55N4(5) |
7.5 |
10 |
27.7 |
21.0 |
18.0 |
30 |
269 |
17.0 |
25.5 |
ATV312HU75N4(5) |
11 |
15 |
37.2 |
28.4 |
25.0 |
97 |
397 |
27.7 |
41.6 |
ATV312HD11N4(5) |
15 |
20 |
48.2 |
36.8 |
32.0 |
97 |
492 |
33.0 |
49.5 |
ATV312HD15N4(5) |
Applications
Textile machine
Packaging machine
Material handling machine
Machine tools, wood working machine
Fan & pump machine
Special machine (plastics machine, building material machine, etc.)

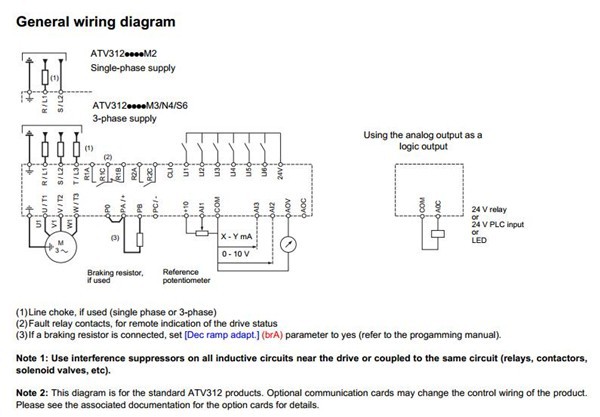

Wiring
