Model

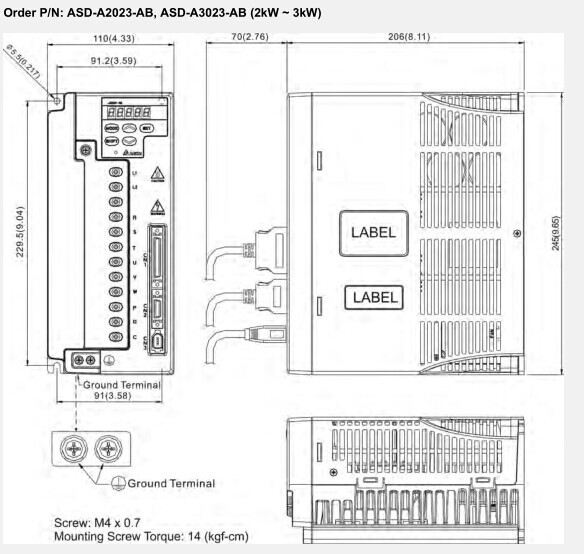

ASD-A2023-AB

Corresponding Servo Motor

ECMA-C31020_S (S=22mm)

ECMA-E31320_S(S=22mm)

ECMA-E31820_S(S=35mm)

Power

2Kw

Power

Supply

Phase / Voltage

Three-phase: 170~255VAC,50 / 60Hz ±5%

Continuous Output Current

9.1 Arms

Cooling method

Fan Cooling

Encoder Resolution /Feedback Resolution

2500ppr / 10000ppr

Control of Main Circuit Control

SVPWM Control

Tuning Modes

Auto/ Manual

Dynamic Brake

Built-in

Position

Control

Mode

Max. Input Pulse

Frequency

Max. 500Kpps (Line driver) / Max. 200Kpps (Open collector)

Pulse Type

Pulse + Direction, A phase + B phase, CCW pulse + CW pulse

Command Source

External pulse train / Internal parameters

Smoothing Strategy

Low-pass and P-curve filter

Electronic Gear

Electronic gear N/M multiple N: 1~32767, M:1:32767(1/50<N/M<200)

Torque Limit Operation

Set by parameters

Feed Forward Compensation

Set by parameters

Speed

Control

Mode

Analog

Input

Command

Voltage

Range

0 ~ ±10 VDC

Input

Resistance

10 KΩ

Time

Constant

2.2 us

Speed Control Range^*1

1 : 5000

Command Source

External analog signal / Internal parameters

Smoothing Strategy

Low-pass and S-curve filter

Torque Limit Operation

Set by parameters or via Analog input

Responsiveness

Characteristic

Maximum 450Hz

Speed Fluctuation

Rate ^*2

0.01% or less at load fluctuation 0 to 100% (at rated speed)

0.01% or less at power fluctuation ±10% (at rated speed)

0.01% or less at ambient temperature fluctuation  0 to 50 degree centigrade (at rated speed)

Torque

Control

Mode

Analog

Command

Input

Voltage

Range

0 ~ ±10 VDC

Input

Resistance

10 KΩ

Time

Constant

2.2 us

Command Source

External analog signal / Internal parameters

Smoothing Strategy

Low-pass filter

Speed Limit Operation

Parameter Setting or via Analog input

Analog Monitor Output

Monitor signal can set by parameters (Output voltage range: ±8 V)

Communication Interface

RS-232 / RS-485 / RS-422
