ACM6002L2H-10-B+L5-400 AC Servo Motor Drive Kit 200W 2.1A 0.64NM 2500ppr 60mm 200VAC
- Model: ACM6002L2H-10-B+L5-400
- Shipping Weight: 2.5Kg
- In Stock:10
0 reviews
|
L5-400 Servo Drive
ACM6002L2H-10-B Motor

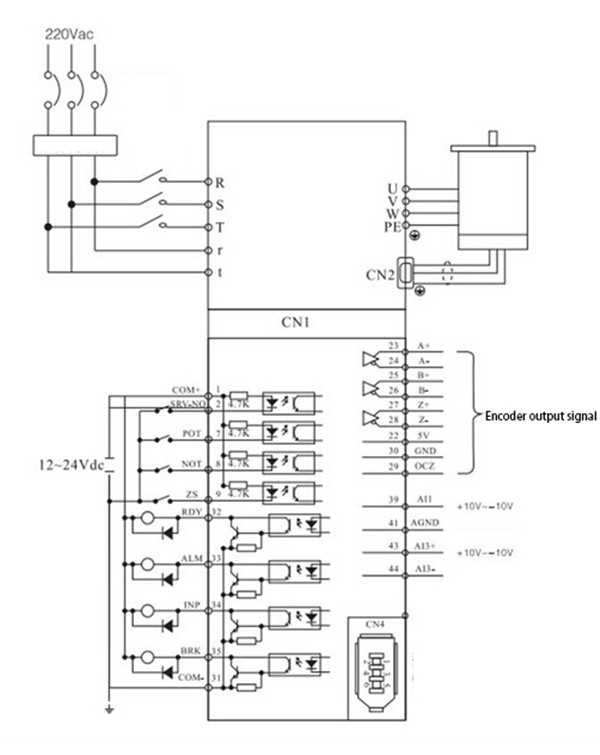

L5 Connection
|
||||||||||||||||||||||||||||||||||||||||||||||||||
L5-400 +ACM6002L2H-10-B
L5-400 Servo Drive
|
L5 Products |
L5-400 |
L5-750 |
L5-1000 |
|
Input power voltage |
187-240Vac |
||
|
Continuing output current |
2.8Arms |
4.5Arms |
7Arms |
|
Feedback Way |
2500P/R incremental encoder(standard), 17-bit absolute encoder |
||
|
Control Way |
SVPWM |
||
|
Operation Mode |
Man/auto |
||
|
Built-in resistance |
50 ohm/40W |
50 ohm/ 50W |
50 ohm/ 100W |
ACM6002L2H-10-B Motor
|
Model |
ACM6002L2H-10-B |
|
Motor power (W) |
200W |
|
Rated Torque (NM) |
0.64 |
|
Rated Current (A) |
1.5 |
|
Rated rotate speed(RPM) |
3000 |
|
Maximum Momentary Torque(NM) |
1.91 |
|
Momentary Overload Current(A) |
4.5 |
|
Torque Constants(Nm/A) |
0.31 |
|
BEMF Constants (V/Krpm) |
18.92 |
|
RotorInertia(kg.m2 x 10-5) |
3.1 |
|
Pole Number 2P |
8 |
